Tanksert Rupture Disc

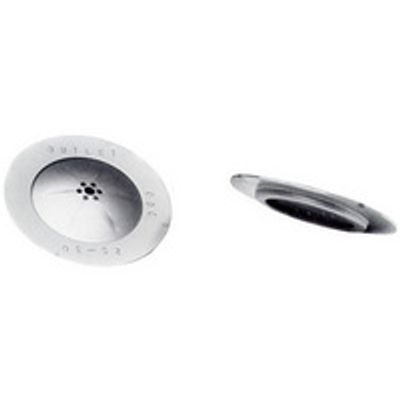

The Tanksert Rupture Disc (Bursting Disc) was designed exclusively for railroad tank car overpressure protection, and to conform with ICC regulations. The Tanksert Rupture Disc (Bursting Disc) is a Composite Type, with a flat seat sealing configuration.
Most popular related searches
- Nominal Size Range: 2 " - 2 " ( 50 mm - 50 mm )
- Burst Pressure Range: 25 psig- 165 psig ( 1 barg - 11 barg )
- Recommended Operating Ratio: 80 % of the rupture disc`s rated (stamped) burst pressure.
- Seating Configuration: Flat Seat
- Service: Liquid or Gas
- B.D.I. Alarm System Compatible? : No
- ASME Code Symbol Stamp Available? : No
