Isokinetic Monotube Probes - Model EN13284 -TCR Tecora
The dividable monotube probes can be used in that application where isn’t possible or not convenient to use an integrated probe. Are developed in conformity with the “Determination of dust concentration at low concentrations” according to the EN 13284-1. The Method in the In-stack filter sampling line describe a particular entry nozzle with combined filter holder, that is positioned in parallel to the gas stream.

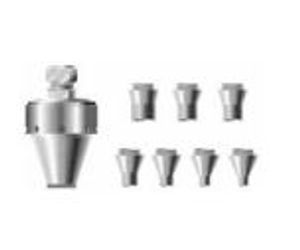

Designed in complete accordance with the EN 13284-1 Norm. Contains a filterholder for membrane diam. 47mm with cone shape metal-metal connection, a kit of 7 interchangeable nozzles diam. 4,5,6,7,8,10, and 12 mm, a gasket set max. temp. 350°C, the tools for the tightening and a carrying case.

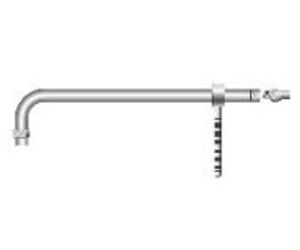

This curve of 90° allows assembling the filterholder in parallel in the gas flow. Equipped with a hosebarb and a comfortable work handgrip, which is also useful to recognize the orientation of the probe from outside. Length of probe: 500 mm.

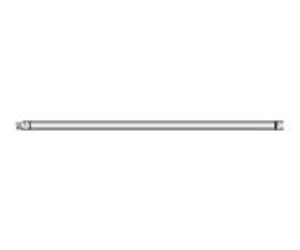

To allow a complete inspection also in elevated diameter ducts, there are extendible tubes available. One can be connected to another, and so fixed directly to the curved probe. Length of tube: 1000 mm.
Filterholder diam 47 vertically mountings
P/N AC99-102-0001SP
Kit of 7 interchangeable nozzles
P/N AC99-102-0002KP
Set of 10 probe gaskets 350°C
P/N AC99-102-0012CR
Set 10 filterholder gaskets 350°C
P/N AC99-099-9907CR
Slide and Lock Device
To fix the probe to the stack, incorporates a locking ring to compatible with the Universal flange.
Accessories and Spare parts
The universal flange allow the connection to 4”(DN 100) flange.
