Campbell Scientific - Model 107 -Temperature Probe

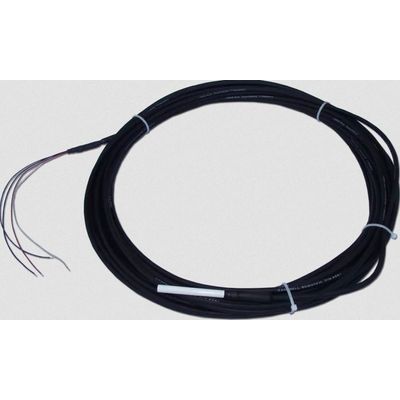

The 107 is a rugged, accurate probe that measures temperature of air, soil, or water from -35° to +50°C. It easily interfaces with most Campbell Scientific data loggers and can be used in a variety of applications. The 107 consists of a thermistor encapsulated in an epoxy-filled aluminum housing. The housing protects the thermistor, allowing you to bury the probe in soil or submerge it in water.
Most popular related searches
data logger
scientific data logger
air temperature sensor
temperature monitoring
scientific data
temperature sensor
temperature probe
water sensor
air sensor
air monitoring
- Versatile product—measures air, soil, or water temperature
- Easy to install or remove
- Durable
- Compatible with AM16/32-series multiplexers, allowing measurement of multiple sensors
- Sensor Description: BetaTherm 100K6A1IA Thermistor
- Tolerance: ±0.2°C (over 0° to 50°C range)
- Temperature Measurement Range: -35° to +50°C
- Temperature Survival Range: -50° to +100°C
- Steinhart-Hart Equation Error: ≤±0.01°C over measurement range (CRBasic data loggers only)
- Polynomial Linearization Error: Typically < ±0.5°C over measurement range (Edlog data loggers only)
- Time Constant in Air: 30 to 60 s (in a wind speed of 5 m s-1)
- Maximum Submergence: 15 m (50 ft)
- Probe Diameter: 0.76 cm (0.3 in.)
- Probe Length: 10.4 cm (4.1 in.)
- Maximum Cable Length:
- 305 m (1000 ft) is typical and requires no programming changes.
- 762 m (2500 ft) requires programming changes. (Refer to section 8.4 of the 107 manual for assistance.)
- Weight: 136 g (5 oz) with (3.05 m) 10 ft cable
