IM - Model IM 1100 F - CO -Tester for Forklift Trucks
The exhaust gas analyzer IM1100F is designed to measure exhaust gases of LPG Forklift Trucks. The analyzer measures the Carbon Monoxide CO content in volume percent as requested by European and Worldwide regulations. The measured CO value can be saved or printed. The analyzer comes complete with a flexible probe, IR-printer (only IM1100F-SET), additional printer paper (only IM1100F-SET) and a carrying case. The flexible probe, which fits in most exhaust pipes, is inserted into the exhaust pipe and a clamp holds it in place. Measuring exhaust gases is not only important to help control pollutants like CO, but it also helps optimizing fuel efficiency and therefore saving costs.
- 3-line, backlit LCD
- Memory for up to 50 measurements
- Alarm @ 0.1 Vol.% CO
- Printout with date & time
- IR interface
- Flexible gas sampling probe
- Condensation trap with integrated filter
- Carrying case
- 3 x AA batteries
- Carbon Monoxide CO 0 - 9.999 Vol.%
- Flexible gas sampling probe
- Batteries 3 x AA batteries
- Dimensions 200 x 90 x 60 mm
- Weight 500g
- Operating conditions -10°C..50°C (10-90% RH, non-condensing)
IM Environmental Equipment Germany GmbH reserves the right to adopt technical modifications without prior notice.
- Exhaust Gas Analyser IM1100F
- IR Printer (optional - only when ordered as SET)
- Gas sampling probe
- Hard carrying case
- 3 x AA batteries
- Manual
- Calibration certificate
- IR-printer
- Filter

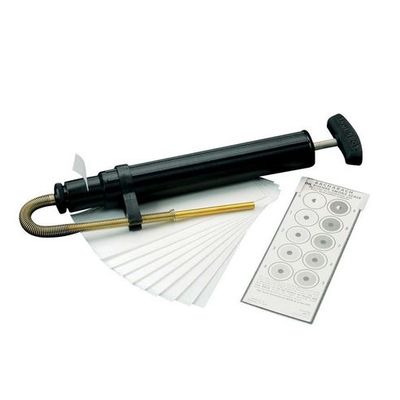

- Soot pump
- Densitometer IM900
