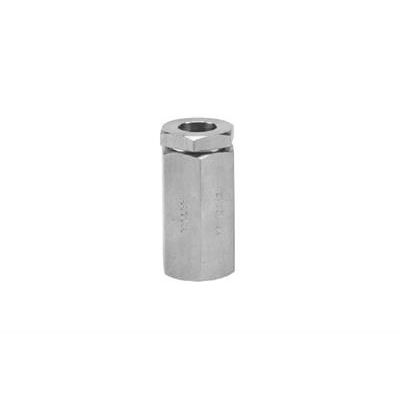

Midland-ACS - Model 4500 -Thermal Fuses 1/2 NPT

• Specifically designed for severe environments
• 316L Stainless Steel
• For fire release

Working Temperature Range:

• -20 ºC to +70 ºC (-4 ºF to +158 ºF)
• -20 ºC to +96 ºC (-4 ºF to +205 ºF)
• -20 ºC to +102 ºC (-4 ºF to +216 ºF)
• -20 ºC to +124 ºC (-4 ºF to +255 ºF)
• -20 ºC to +137 ºC (-4 ºF to +279 ºF)
• -20 ºC to +200 ºC (-4 ºF to +392 ºF)

Working Pressure:

• 12 bar (174 psi)

Ports NPT:

• 1/2”

Operating Media:

• Gases - filtered lubricated or non-lubricated
• Air, inert gas, sweet (natural) gases

Maximum Flow:

At 6 bar, 1 bar differential:

Supply to outlet

• 1/2” - 5800 L/Min (205 SCFM)

Construction Materials:

• Body: 316L Stainless Steel
• Thermal plug: Low melting point alloy (bismuth-based)
