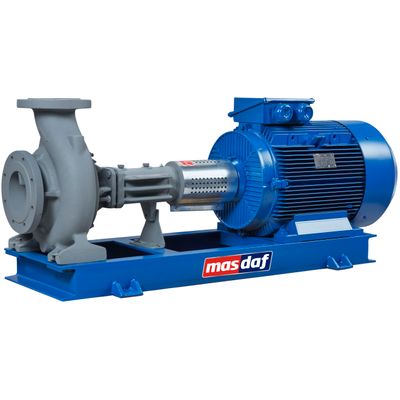

MAS GRUP - Model KYP Series -Thermal Hot Oil Pumps

Single stage, end suction centrifugal pumps. Main pump dimensions are compatible with DIN 24256 (ISO 2858). Single entry, closed type impeller is used. Radial vanes are used behind the impellers to lower the pressure and to balance the thrust (axial force). The pump and the motor are connected by means of a flexible coupling on a common base plate. Maintenance of the pump is very easy. The shaft and other rotating parts can be removed without dismantling the suction and the discharge system. Since the pump uses many standard parts, spare parts are readily available. These pumps are designed so that there is no need for external cooling. Due to natural convection the pump temperature decreases towards the roller bearing.
