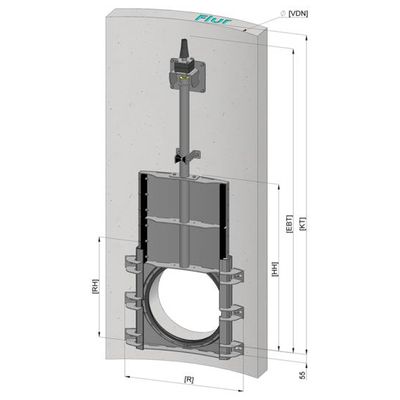

ABS-Armaturen - Model G4V -Threaded Slide Gate Penstock

Soft sealing on four sides in accordance with seal class 4 (DIN 19569 part 4). Use as regulating or throttling protection. The seal pressure can be adjusted and readjusted using linear-functioning PE-UHMW tapered slide rails. The ABS Tri-sealing profile is positive locking and force-closed, and is tension-restrained in order to achieve low frictional forces and torques.
