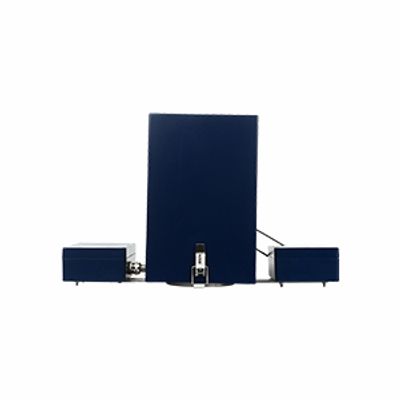

Tianyu - Flue Gas Sampling Probe

FromWuhan Tianyu Intelligent Control Technology Co., Ltd.

The gas sampler is easy to operate, with a built-in micro filter, which is suitable for various probes and joints of different specifications. The heated sampling probe heats and transports the sample gas, which is more and more widely used.

Most popular related searches

sampling probe

gas sampling

flue gas sampling probe

sample gas

heated sampling probe

flue gas sampling

gas sampling probe

digital temperature controller

sample gas probe

heated sampling

The sampler adopts electric heating, and the heating speed is fast.
The temperature control of the sampler is performed by the built-in temperature control switch. The default temperature is: 150 ? ± 10 ?.
The filter device of the sampler in the heating and insulating cavity. Solid particles larger than 2μm are removed by the silicon carbide microfilter.
The sampler has backflush and calibration functions.

Sampling gas temperature: 600°C Max
Gas pressure: 0.4~3BarMax.
Ambient temp.: -20°C~80°C
Probe temp.: 150°C±10°C
Connector of pipe: G3/4"
Gas outlet: OD6/4mm {or OD8/6mm)
With backflushing: Yes
Backflushing gas inlet: OD6/4mm {or OD8/6mm)
Filter material: silicon carbide: 2um/75mm
Filter chamber capacity: 40cm3
Power supply: 220V 50Hz
Power consumption: 650W
IP class: P65
Startup time: Less than 30Min
Weight: 12Kg
Enclosure: blue printed
