AMI Barracuda - Model 4010LX TDL -Trace Moisture Analyzer
Full-Featured TDLAS Moisture Analyzer for Critical H2o Measurements in Gas Streams. The MODEL 4010LX TDL Moisture Analyzer has significantly raised the bar for measuring water vapor in a natural gas stream.
All the Advanced Features for One Low Price

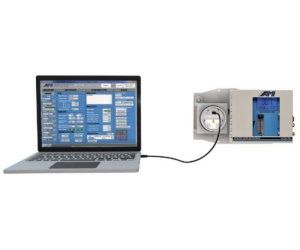

The BARRACUDA MODEL 4010LX comes loaded with all the advanced features at a fraction of the cost of other TDL analyzers. Standard features include dual independent alarm relay contacts, comprehensive alarm logic (fail safe or non-fail safe, latching or non-latching and independent alarm delays), alarm bypass, and 3 levels of security settings. When connected to AMI’s powerful COMMAND CENTER software, operators can customize alarm configurations, download time-stamped data log information, review error codes, and realign the laser absorption peaks using our SMART ALIGNMENT protocol.

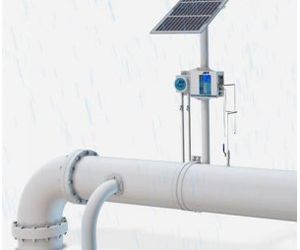

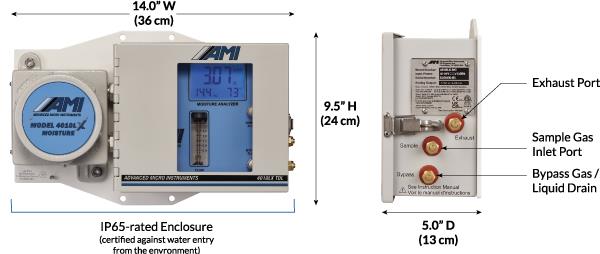

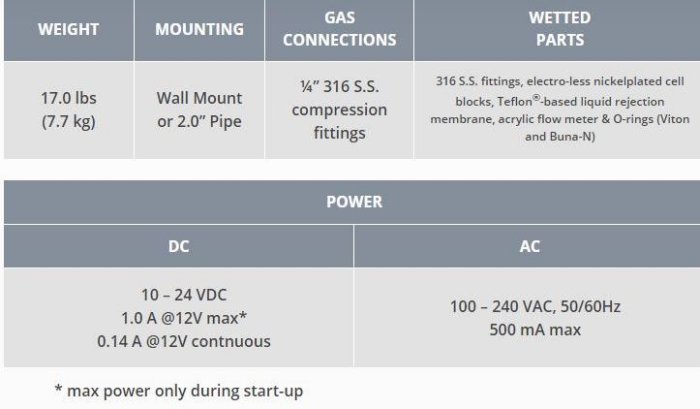

The compact design of the MODEL 4010LX and light weight of only 17 lbs allow for easy installation in tight areas by a single technician. An IP-65 rating permits installations for indoors or outside in harsh elements. Available in AC or DC power. Low DC power requirements allow for operation using a solar panel. Finally, the unit can be installed in our Extreme Weather Enclosure for additional protection.

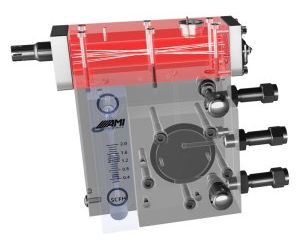

The patented ELIMINATOR HERRIOTT CELL BLOCK with ANALYZER GUARDIAN integrates a low volume sample gas measurement laser cell, flow meter, metering valves and Analyzer Guardian liquid rejection technology into a compact-stacked block. Our innovative design keeps the total analyzer size small, eliminates the use of leak-prone fittings and tubing and makes the MODEL 4010LX‘s gas path short to provide fast and accurate moisture readings.

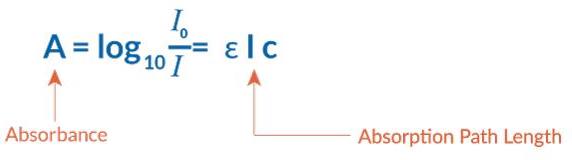

THE BEER-LAMBERT LAW shows that a longer laser path will yield greater sample gas absorbance, resulting in a more accurate & precise moisture measurement.
AMI’s uniquely small Herriot Laser Cell Design utilizes a multi-pass laser path, providing significantly more measurement capabilities compared to a single-pass cell design. This results in an incredibly accurate and precise moisture measurement in an extremely compact laser chamber.

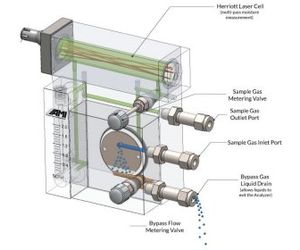

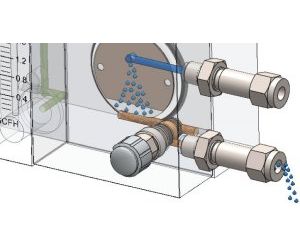

ANALYZER GUARDIAN Technology allows for sample gas to pass through the Herriott Cell while rejecting particulates, water, compressor oils and glycols. This design will completely seal off and protect the 4010LX if a large liquid slug reaches the analyzer.

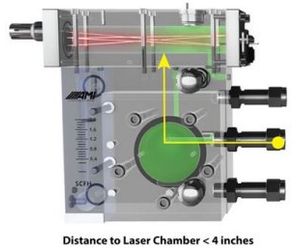

The entire gas path is contained within our patented ELIMINATOR CELL BLOCK. The gas travels a short 4 inches from the Sample Gas Inlet before entering the laser measurement cell, resulting in a fast, accurate and stable reading.

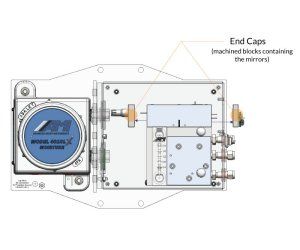

The 4010LX design allows for the user to clean the reflective mirrors of the Herriott Cell in the field in the unlikely event liquids or particulates break through our protective membrane. Additionally, users can easily re-align the laser absorption peaks using AMI’s COMMAND CENTER software.

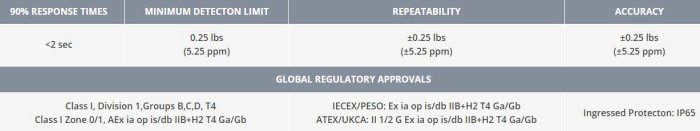

Eliminator Cell Block
- With a Complete Integrated Sample System (including flow meter, sample metering valve, bypass metering valve, liquid rejecton membrane, and Laser Measurement Cell)
Alarms
- 2 fully adjustable concentration alarms with configurable Alarm logic and Relay Contacts, featuring:
- Alarm Bypass
- Latching/Non-latching
- Alarm Delays
- Failsafe/Non-failsafe
- Trigger Above or Below Setpoint
- Open or Close on Alarm
Analog Outputs
- 1 − 5 VDC and 4 − 20mA isolated output signals and Modbus bi-directional RS485 communication
Command Center
- Software that works across AMI’s Analyzers and gives users access to advanced functions:
- Error Status Display
- Alarm Configurations
- SMART REALIGNMENT of signature H2O and methane peaks
- Data Logger with time-stamped records of moisture readings,
- temperature, brown-outs and pressure as well as security settings
Accessoris
- Extreme Weather Enclosure
- Mirror Cleaning Kit
Warranty
- 2 Years for Parts & Labor for any defects in materials or workmanship
Natural Gas Industry
Natural Gas is the foundation of many parts of modern society such as power generation, chemical production, heating and powering appliances in homes and businesses. From the moment it is extracted from the ground, AMI’s analyzers are involved in the monitoring of the oxygen, hydrogen sulfide and moisture levels in the gas stream.
Biogas Industry
Biogas is a renewable energy source produced by breaking down waste organic materials through anaerobic digestion and capturing the resulting biogas for reuse. AMI’s gas analyzers are and excellent choice to monitor and control oxygen, H2S and moisture levels during the biogas upgrading process.
