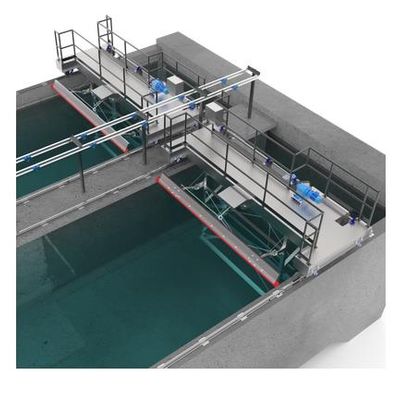

Potential - Travelling Bridge Scraper System / Grit & Grease Removal Bridge
Travelling bridges are deployed for removal of grease and grit in municipal and industrial wastewater treatment plants. The traveling bridge clarifier consists of a movable truck mounted on two traction trolleys. Underneath the truck one surface and one bottom scraper is installed. A sludge scraper blade is installed along the width of the tank. The bridge is mounted on four rigid wheels that ride on the rail and travel the length of the tank. The traveling bridge collector is widely used in corrosive environments where the travel length and width is large.
Traveling bridge or sludge cum scum scraper bridge is one of the important components in a sedimentation pond. It prevents accumulation of sludge and scum at the bottom and top of the pond. The traveling clarifier bridge is designed for a range of specifications based on the type of pond.
- Dimensions: Up to 13 m wide & 60 m long
- Application: Scum & grit removal
- Drive: Electric
- Power Supply System: Festoon
- Travelling System: On rail
- MOC: Hot dip galvanized carbon steel/ SS304/ SS316
- Customized design
- Robust, durable and reliable
- Low maintenance cost
- Easy to install, operate and maintain
- Safe operation in hazardous area
- Spares are easily available
- Oily Water Treatment
- Oil & Grease Removal
- Fats Removal
- Oil & Gas
- Wastewater & Water
- Power
- Steel
- Municipal
- Marine
- Dairy
- Pharma
- Food and Beverages
- Chemical
