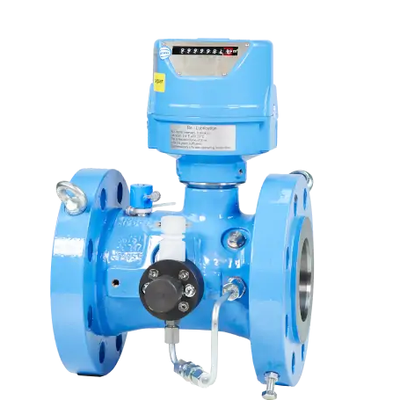

RMG - Model TRZ 03 -Turbine Gas Meter
The TRZ03 series is an excellent representation of a proven and mature technology that is widely used throughout the natural gas industry due to its good price-performance ratio. The first generation was approved by PTB in 1993. Since then the meters have always exceeded the requirements of the relevant international standards. The TRZ03 is used both in the pipeline networks of the transport companies (TSOs) and in the transfer stations of the distribution network operators (DSOs) when high measuring accuracy for custody transfer operation, short inlet distances, robust and low-maintenance devices are required. In addition to the classic mechanical roller counter and the electrical pulse outputs, the meter can optionally be equipped with an encoder for serial transmission of the meter reading.
- Roller counter, which registers the total volume and displays it at any time without a power supply
- Horizontal or vertical gas flow
- DIN-DVGW tested and PTB approved
- High measuring accuracy
- Optionally with mechanical output clutch
- Device for measuring gas volume in fiscal metering
- Suitable for gases according to DVGW worksheet G-260 and neutral, non-aggressive gases, other gases on request
- Special design for aggressive gases is possible
- Roller counter, which registers the total volume and displays it at any time without a power supply
- High measuring accuracy
- Horizontal or vertical gas flow
- Optionally with mechanical output clutch
- TRZ 03E without mechanical counter, with electronic tap for computer systems
- DIN-DVGW tested and PTB approved
- Max. permissible pressure PS: = 100 bar
- Max. Operating pressure pmax: up to 100 bar
- Meter size: G 65 to G 16000 (from Qmax 100 m³/h to Qmax 25000 m³/h)
- Measuring range max.: 1 : 50
- Connection: DIN-Flansch PN 10, PN 16, PN 25, PN 40, PN 100 und
- Flansch nach ANSI 150, ANSI 300, ANSI 600 in
- DN 50, DN 80, DN 100, DN 150, DN 200, DN 250, DN 300, DN 400, DN 500, DN 600
