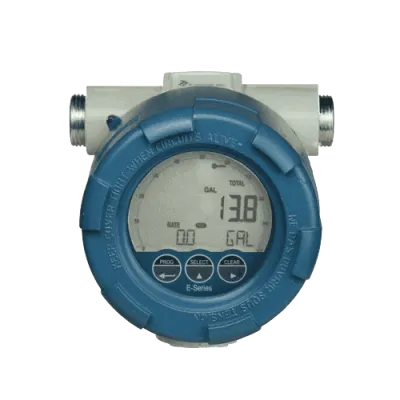

Turbines - Model E Series -Explosion Proof Flow Monitor
The E Series Flow Monitor by Turbines Incorporated is engineered to meet high standards for explosion-proof performance. It ensures safety in daily operations, with a design that surpasses typical environmental requirements. This robust flow rate indicator and totalizer is tailored for integration with turbine meters and frequency-generating devices. It features a programmable interface accessible through a glass front keypad or via PC, a backlit LCD, and multi-point linearization for accurate measurement. The monitor displays both rate and total across various units such as gallons, barrels, liters, and cubic feet, with data relayed through scalable pulse, 4-20mA, or Modbus outputs. Built with aluminum or stainless steel and capable of operating in temperatures from -40°F to +158°F, this monitor is suitable for extreme conditions. Turbines Incorporated also provides technical support services including repair and recertification, as well as onsite calibration by experienced technicians.
The E Series flow monitors are explosion proof, display rate and total, and allow for seamless integration with turbine meters and other frequency-generating devices. The E Series monitors are programmable by a through glass front keypad or via PC. Featuring a backlit LCD and multi-point linearization for enhanced metering accuracy, the E Series displays rate and total in multiple engineering units, such as gallons, barrels, liters, and cubic feet. This flow data is relayed via scalable pulse, 4-20mA, or Modbus outputs. With enclosures made from aluminum or stainless steel, and a temperature range of -40°F to +158°F, this series can operate in the harshest of environmental conditions.
Support and Service
Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.
If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.
Our extensive inventory permits rapid shipment with industry leading delivery times, thus minimizing expensive down time.
- Explosion proof flow rate indicator
- Custom LCD display provides multiple flow data at a glance
- USB communication for local data extraction
The E‐series distinguishes itself by its quality and functionality driven design. It exceeds the standards for explosion proof design and provides safety during daily operation. The explosion proof enclosure in most applications exceeds the environmental demands. Durability and reliability are what Turbines, Inc. strives for and it is available in this comprehensive, well designed and purpose driven explosion proof flow rate indicator/totalizer.
- Display : High intensity transflective numeric and alpha-numeric LCD, UV-resistant, with bright backlight.
- Intensity can be adjusted via the keypad.
- Note: When battery powered, the backlight is only operational after a keypad touch to extend the battery lifetime.
- Dimensions : Ø 65 x 45mm (2.56” x 1.77”)
- Digits : Seven 12mm (0.47”) and eleven 7mm (0.28”) digits.
- Various symbols and measuring units.
- Refresh rate : User definable: 8 times/sec. - 30 secs.
- Speedometer : To indicate the actual flow rate the bar graph runs from 0 to 100% in 20 blocks, each block is 5%.
- Operating temperature : Ambient -40°C to +70°C (-40°F to +158°F).
- Hazardous area - Explosion proof : ATEX Gas: II 2 G Ex d IIC T6 Gb. certification Dust: II 2 D Ex tb IIIC T85°C Db.
- IECEx Gas: Ex d IIC T6 Gb.
- certification Dust: Ex tb IIIC T85°C Db.
- FM & CSA c-us Class I, Div. 1, Grps A, B, C, D.
- certification Class II/III, Div. 1, Grps E, F, & G.
- Class I, Zone 1, AEx d IIc T6 Gb,
- Zone 21, AEx tb IIIC T85°C Db.
