Turbines Inc. products

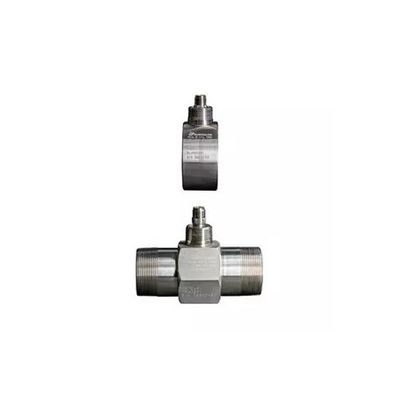

The WM Liquid Wafer Style Turbine flow meter is a highly-versatile product line that offers all stainless steel, precision-machined components with CD4MCu and/or 416 stainless steel rotors in line sizes from 3/8″ through 10.0″.

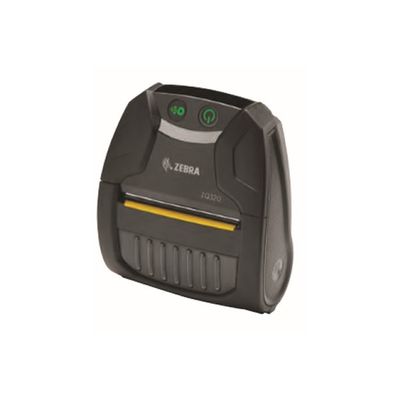

The ZQ320 provides the optimum in performance, reliability and convenience in mobile printing. Using Bluetooth communications the printer can communicate with the CDS1000 remotely. This intelligent printer automatically enters sleep mode when it is idle, and automatically wakes up upon receipt of a printing job; no need for workers to remember to turn off the printer to save power. Charging stations and cables allow convenient battery restoration. Direct thermal printing allows quick and clear receipt printing. Paper replacement is as simple as opening the printer cover and installing a roll. No more threading the paper through a print head maze. Custom header programming is available to individualize the delivery ticket.

The TMG Series gas flow meter delivers accurate measurement in a variety of applications. This durable turbine meter is designed to withstand challenging conditions and deliver accurate results over a long service life. The Turbines Inc. gas flow meter delivers +/- 1% standard accuracy over the flow range. For every turbine flow meter manufactured by Turbines, Inc., a unique K-factor is documented by means of NIST-traceable factory calibration. For additional local output, the TMG Series can be combined with one of our flow monitors for a complete, accurate solution.

The LF Series flow meter is manufactured specifically for low-flow applications ranging from .007 to 3gpm. The Low Flow Meter can handle working pressures up to 20,000psi (based on end-connection used) and deliver +/- .25% repeatability over the specified flow range. Turbines, Inc. documents the K-factor for each meter by means of a 20-point NIST-traceable factory or independent laboratory calibration.

The F Series Flow Monitor by Turbines, Inc. is engineered to effectively address the measurement needs across a wide swath of industries such as industrial, agricultural, commercial, and oil and gas sectors. These monitors are adept at handling a spectrum of flow measurement tasks requiring high accuracy and reliability. They feature a backlit LCD display that shows both rate and total flow values and are easily programmable via a front keypad. This device supports multiple engineering units and includes a 2-15 point linearization process to boost metering precision. It delivers data through scalable pulse, 4-20mA, or Modbus outputs, providing flexibility for integration with various devices. Also available in intrinsically safe and weatherproof configurations, they ensure robust performance in extreme temperature conditions ranging from -40°F to +158°F. Housed in a GRP enclosure, the F Series Flow Monitor is equipped for durability and resilience in rugged environments.

The E Series Flow Monitor by Turbines Incorporated is engineered to meet high standards for explosion-proof performance. It ensures safety in daily operations, with a design that surpasses typical environmental requirements. This robust flow rate indicator and totalizer is tailored for integration with turbine meters and frequency-generating devices. It features a programmable interface accessible through a glass front keypad or via PC, a backlit LCD, and multi-point linearization for accurate measurement. The monitor displays both rate and total across various units such as gallons, barrels, liters, and cubic feet, with data relayed through scalable pulse, 4-20mA, or Modbus outputs. Built with aluminum or stainless steel and capable of operating in temperatures from -40°F to +158°F, this monitor is suitable for extreme conditions. Turbines Incorporated also provides technical support services including repair and recertification, as well as onsite calibration by experienced technicians.
