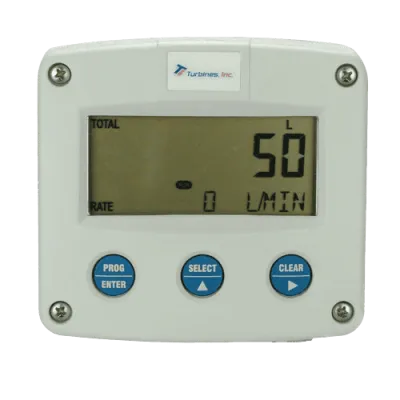

Turbines - Model F Series -Flow Monitor for Industrial Applications
The F Series Flow Monitor by Turbines, Inc. is engineered to effectively address the measurement needs across a wide swath of industries such as industrial, agricultural, commercial, and oil and gas sectors. These monitors are adept at handling a spectrum of flow measurement tasks requiring high accuracy and reliability. They feature a backlit LCD display that shows both rate and total flow values and are easily programmable via a front keypad. This device supports multiple engineering units and includes a 2-15 point linearization process to boost metering precision. It delivers data through scalable pulse, 4-20mA, or Modbus outputs, providing flexibility for integration with various devices. Also available in intrinsically safe and weatherproof configurations, they ensure robust performance in extreme temperature conditions ranging from -40°F to +158°F. Housed in a GRP enclosure, the F Series Flow Monitor is equipped for durability and resilience in rugged environments.
The F Series flow monitors display rate and total, allowing seamless integration with turbine meters and other frequency-generating devices. Programmable by a front keypad, these monitors feature a backlit LCD, multiple engineering units, and 2-15 point linearization for enhanced metering accuracy. The flow data is relayed via scalable pulse, 4-20mA, or Modbus outputs. With intrinsically safe or weatherproof options, these monitors feature a GRP enclosure* and a temperature range of -40°F to +158°F, allowing for operation in harsh environments.
- Display : Large high intensity transreflective LCD 40 x 90 mm with seven 17mm digits and eleven 8mm digits.
- Automatic contrast adjustment for temperature variations.
- Control Panel : Three micro-switch keys with UV - resistant polyester key pad
- Enclosure : Polycarbonate window
- UV - resistant coated aluminum enclosure with stainless steel bolts (F012P-HA)
- Optionally available in all ABS enclosure (F012P)
- Mounting Arrangement : Suitable for direct mount is standard.
- Optionally available wall mount, horizontal or vertical pipe mount and panel mount.
- Gross Dimensions : T130 x 114 x 58 mm (5.1' x 4.5" x 2.3" L x H x D.) Panel cut-out requirements (115 x 96 mm.)
- Operating Temperatures : T-30°C to +80°C (‐40°F to 158°F)
- Battery : Lithium-lifespan dependent upon settings: Average life up to seven years.
- Configuration : Performed at SET-UP level. Each function displayed in understandable texts. All settings programmable; NO mechanical DIP-switches.
- Password : SET-UP level password protected.
- Data Protection : EEPROM backup of all settings.
- Backup accumulated total every 1 minute.
- Data retention 10 years.
- Selection Main Functions : Total or Flow rate will be displayed with 17mm digits.
- Approvals and Certifications : CSA approvals available where necessary with intrinsically safe design.
