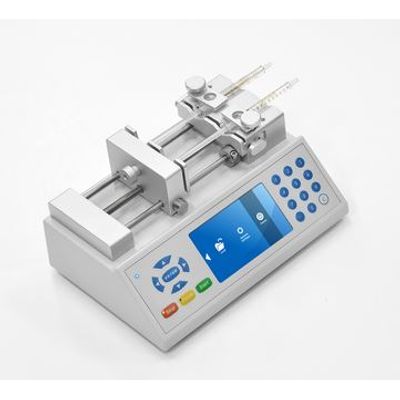

Fusion - Model 200 -Two-Channel Syringe Pump
The Fusion 200 is a modular two-channel infusion and withdrawal syringe pump. This popular two-channel syringe pump model has the following features: two syringes to infuse and withdraw simultaneously at pulseless, reproducible rates; a programmable multi-step mode that allows users to program complex multi-step flow rates; computer control with Lab view and other programs; an add-on 10-syringe push and pull rack to increase the syringe number to ten. Fusion 200 dual syringe infusion and withdrawal pump have been proved to provide pulseless, reproducible flow rates for a wide range of analytical techniques and applications in chemical, pharma, and biotech R&D.
- Holds syringes from 0.5µL to 60mL
- Modular Infuse/Withdraw and Optional 10 syringe rack available
- Rates from 0.0001 µL/min to 84.7 mL/min
- Control via touchscreen, USB, RS232, TTL
- Free Programmable Mode Included
- 2-Year Limited* Warranty
- Available Accessories
- Mode: Infuse/Withdraw
- Accuracy: ± < 0.35%
- Reproducibility: ± < 0.05%
- Syringe Size (Min/Max): 0.5µL to 60mL
- Syringe Flow Rates: See Syringe Library for Min & Max Flow Rates
- Minimum Flow Rate: 0.0001 µL/min (with 0.5µL syringe)
- Maximum Flow Rate: 85 mL/min(with 50mL syringe)
- Linear Force: 50lb (23kg)
- Display: 4.3 inch LCD Touch Screen
- Connectivity: USB-B, RS232 and TTL Ports
- System Dimensions: 9.5 x 6.8 x 4.7 inches (24 x 17 x 12 cm)
- Power: 110/220 VAC
- Weight: 7lbs (3kg)
- Motor Drive: 0.9° Stepper Motor with Micro-stepping
- Step Resolution: 0.046 µm/step
- Operating Temperature: 4°C to 40°C (40°F to 104°F)
- Storage Temperature: -10°C to 70°C (14°F to 158°F)
- Humidity: 20% to 80% RH, non-condensing
- Installation Category: II
- Regulatory Compliance: CE, RoHS, REACH, FCC
Microfluidic Flow Performance
The Fusion 200 two-channel syringe pumps infuse and withdraw solutions at pulseless, reproducible flow rates via a state-of-the-art micro stepper motor. With this dual syringe pump, you can easily and effortlessly deliver accurate and precise amounts of fluids for a multitude of applications like microfluidics dosing, injections into a reactor, mass-spec calibration, and neuro-drug delivery to animals.
- Dual syringe pump supports a variety of precision microflow applications
- Easy to operate touchscreen
- Compatible with lab automation programs LabVIEW and MATLAB
- Free LabVIEW and MATLAB Drivers
Chemyx dual syringe pumps are precision machined with metal components for a level of accuracy needed for microflow applications and for both chemical resistance and mechanical wear. Chemyx high-precision double syringe pumps last for years with an equipment value that is hard to match.
- Machined metal design
- Chemical resistant polypropylene coated screen
- 2-year warranty
Intuitive, user-friendly software on this dual syringe pump lets users program and customize flow profiles and offers a robust database of brand-name syringes. Remote computer control capabilities are available through USB, TTL, and RS232 communication connections. Fusion two-channel syringe pumps also are supported by LabVIEW / MATLAB drivers and are automation ready for coding software like C++, C#, and Objective-C via simple ASCII commands.
- Programmable variable rate profiles via keypad
- Computer control via USB, RS232, TTL
- LabVIEW and MATLAB drivers available
Modular 10 Syringe Rack Attachments
The Fusion Plus modular dual syringe pump is ideal for laboratories that have changing experimental requirements. Infuse and withdraw functions along with a 10-Syringe Holder Rack option allows the Fusion Plus dual channel syringe pump to adapt to a wide variety of changing lab applications.
