Campbell Scientific - Model FW05 -Type E Fine-Wire Thermocouple with 0.0005 in. Diameter

• High frequency response suitable for eddy-covariance applications
• Extremely small diameter virtually eliminates solar loading
• Well-suited for measuring atmospheric temperature flux

The FW05 has the smallest diameter of our fine wire thermocouples. Because of this, it experiences the least amount of solar loading, but is also the most fragile. The thermocouple's small mass eliminates the need for a solar radiation shield.

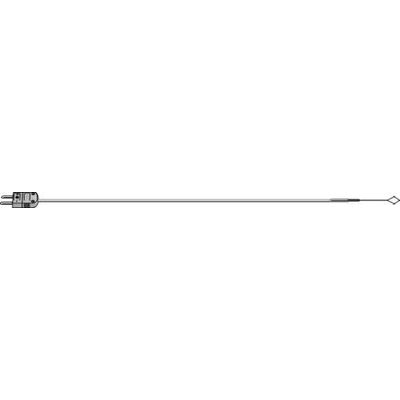

The FW05 consists of a type E thermocouple with a connector. The connector attaches the thermocouple to a data logger via the FWC-L cable.

Type E thermocouples are comprised of a chromel wire and a constantan wire joined at a measurement junction. A voltage potential is generated when the measurement end of the thermocouple is at a different temperature than the reference end of the thermocouple. The magnitude of the voltage potential is related to the temperature difference. Therefore, temperature can be determined by measuring the differences in potential created at the junction of the two wires.

A reference temperature measurement is required for thermocouple measurements. The temperature sensor built into many of our data loggers' wiring panel typically provides this measurement.
