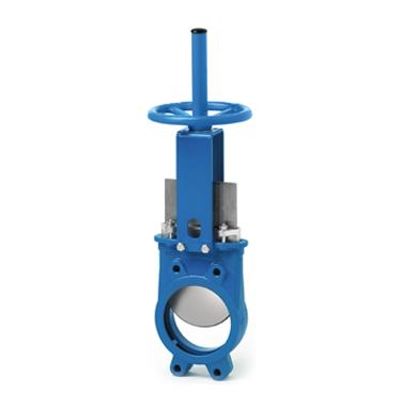

Orbinox - Model EX (SER.10) -UNI-Directional Wafer Style Knife Gate Valve
FromOrbinox
Uni-directional wafer style knife gate valve for general industrial applications. The EX model knife gate valve is a uni-directional wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as: Pulp and paper, power plants, wastewater treatment plants, chemical plants, food and beverage, bulk handling, mining, etc.
Most popular related searches
knife gate valve
gate valve
knife gate
uni directional knife gate valve
wastewater treatment plant
power plant wastewater
chemical treatment plant
wastewater treatment chemicals
bulk handling
wastewater treatment
Sizes
- DN 50 to DN 1200 (larger diameters on request)
Working pressure
- DN 50 to DN 250: 10 bar
- DN 300 to DN 400: 6 bar
- DN 450: 5 bar
- DN 500 to DN 600: 4 bar
- DN 700 to DN 1200: 2 bar
Standard flange connection
- EN1092 PN10
- ASME B16.5 (class 150)
OTHER FLANGE CONNECTION (ON REQUEST)
- EN1092 PN6/16/25
- BS D and E ASME 125
Directives
- For EU Directives and other Certificates please see the document: Directives & Certificates Compliance - Knife Gate Valves – Catalogues and Datasheets
Please contact Orbinox for information and availability of categories and zones.
