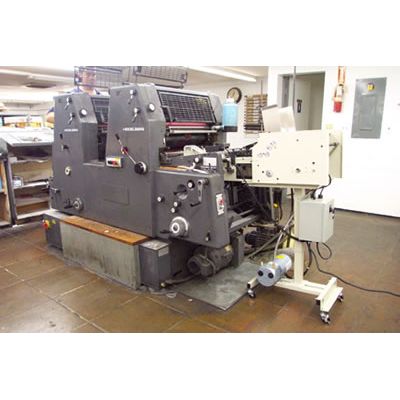

American-Ultraviolet - Model C-9000 -Universal Envelope Feeder
The easy-to-operate C-9000 universal envelope feeder (originally manufactured by Press Specialties, until their acquisition by American Ultraviolet in 2014), is the perfect compliment to your offset and/or digital print shop. Combined with the D-100 universal delivery conveyor, this substrate feeder will allow you to position your business as a true full service printer.
For more than 60 years we`ve designed and built all our reliable, user-friendly, low-maintenance printer envelope feeders in the U.S.A. They feature heavy-duty thick gauge steel and tubing, and contain components from trusted and well-respected brands, ensuring replacement parts are readily available. Our high-quality equipment is easy to set-up, easy-to-service, and requires minimal mechanical changes for different stock sizes. In addition, the C-9000 universal envelope feeder lets you continuously add envelopes without ever stopping the press, therefore increasing production, and lowering labor/run time.
- Patented sucker bar prevents feeding doubles
- Runs all envelopes from 3 x 5 - 10 x 15
- Use on all presses with conventional suckers
- Top-load, bottom vacuum feed for better control
- Single micro adjusting jogger allows for registration on direct-drive presses
- Moves from press to press within minutes
- Cranks up or down to any press height
- Use with coin envelopes, photo mailers, booklet and catalog envelopes, folded stock and card stock
- AB Dick
- Chief
- Hamada
- Heidelberg
- Itek
- Multi
- Ryobi
- Toko
- Height: Adjustable from 30-1/2" to 39"
- Width: 13"
- 115 Volts - 11 Amps - 60hz
- Feeding Speed: 3,000 to 10,000 sph
- Stock Size: Minimum 3"x5", Maximum 10"x15"
- Feed Capacity: Initial envelope capacity of 400 #10 business envelopes, Continuous top-load, bottom vacuum feed mechanism.
- Machine Dimension: Length 38" x Width 15"
