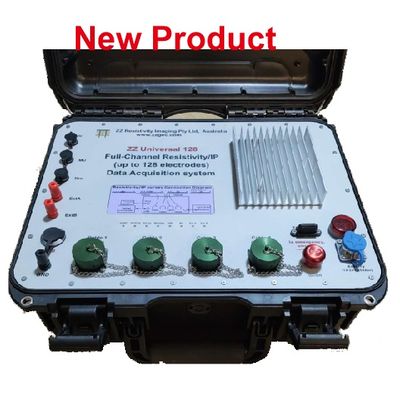

ZZ - Model 128 -Universal Full-Channel Resistivity/IP Meter
General - Five different versions: U128-MN(4 electrodes), U128-32(32 electrodes), U128-64(64 electrodes), U128-96(96 electrodes), and U128-128(128 electrodes). Easy upgrade. Measurment variables: Resistivity, IP and SP. Measurement range: From -10V to +10V. SP compensation: Automatic cancellation. Resistivity cycle times: From 0.1S to 10S. Automatic multi-electrodes: Yes. Data samping rate: 100KHZ. Data storage: Unlimited. Data transmission: USB. Power supply: External 12V battery. Operating temperature: -20 to +70 oC. Operating Humidity: 98% RH. Weight: 9 kg. Dimension: 420x 360 x 200mm. Built-in GPS: Optional.
Most popular related searches
Transmitter:
- Power: 500W
- Current: Up to 3A
- Accuracy: Better than 0.2%
- AB Voltage option : 100, 200, 300, …,900Vp-p
Receiver:
- Electrodes: Up to 128
- Channels: Full-channel or up to 128 channels
- Accuracy: Within 0.1%
- Input impedance: > 107 Ohm.m
- Input voltage protection: 450V
- AD resolution: 24 bits
- Noise suppresion: Better than 100 dB, automatically suppresses powerline noise
