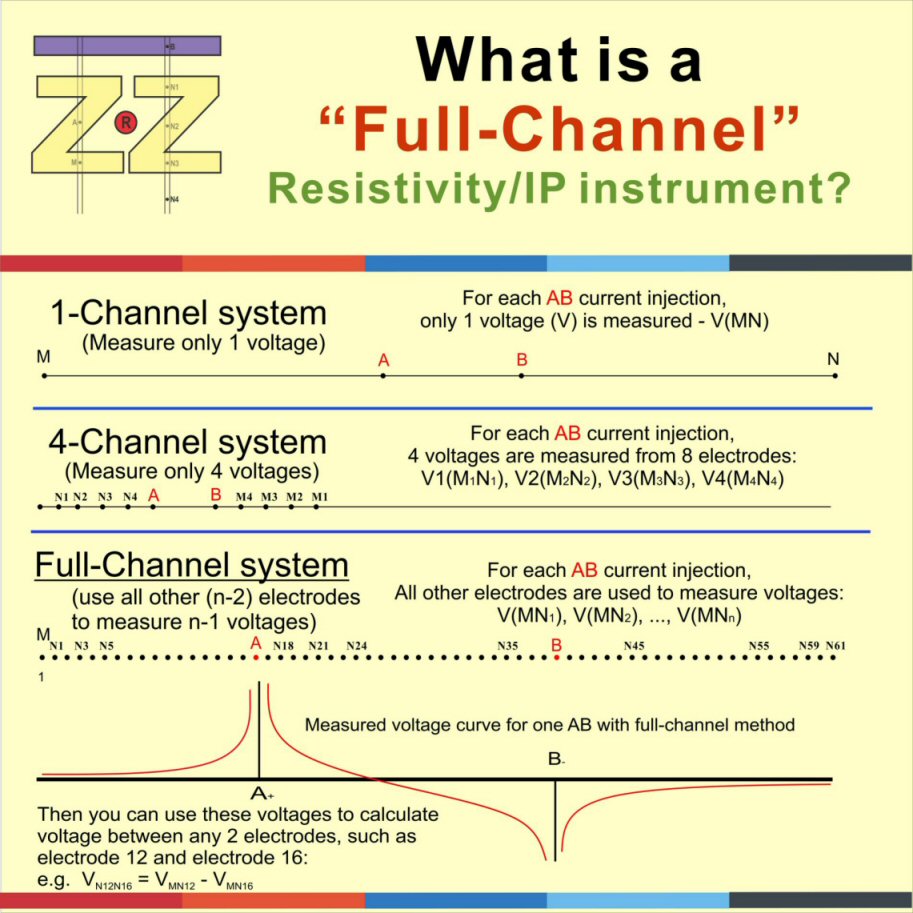

Altezza - Model 64 -Universal Full-Channel Resistivity Meter
General - Measurment variables: Resistivity, IP and SP. Operating time: 30 data points/second. Measurement range: From -10V to +10V. SP compensation: Automatic cancellation. Resistivity cycle times: From 0.1S to 10S. Automatic multi-electrodes: Yes. Data samping rate: 100KHZ. Data storage: Unlimited. Data transmission: USB. Power supply: External 12V battery. Operating temperature: -20 to +70 oC. Operating Humidity: 98% RH. Weight: 5.3 kg. Dimension: 339 x 295 x 152 mm. Built-in GPS: Optional.
Most popular related searches
Transmitter:
- Power: 250W
- Current: Up to 3A
- Accuracy: Better than 0.2%
- Voltage option 1: 50/120/350V (100/240/700Vp-p)
- Voltage Option 2: 100/250/600V (200/500/1200 Vp-p)
Receiver:
- Electrodes: 64
- Channels: 61
- Accuracy: Within 0.1%
- Input impedance: > 107 Ohm.m
- Input voltage protection: 1000V
- AD resolution: 24 bits
- Noise suppresion: Better than 100 dB, automatically suppresses powerline noise
