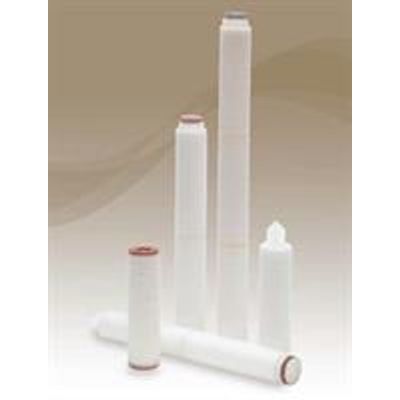

Shelco MicroVantage - Model VGPS Series -Vent Grade Hydrophobic Polysulfone Membrane Filter Cartridge

FromShelco Filters

SHARE

Highly tapered asymmetric pore structure provides excellent flow rate and dirt holding capacity. 6.0 square feet (0.56 m2) of media surface area per ten inch length for optimal performance. Rigid, molded cage protects pleated media and strengthens structural stability. Complies with Food & Drug Administration’s CFR criteria for food & beverage contact. Available in common and end cap configurations to fit most filter housings.

Most popular related searches

membrane filtration cartridge

filter cartridge

membrane filtration

membrane cartridge filter

biological testing

integrity monitoring

filter membrane

cartridge filter

Absolute retention ratings at 0.2 microns
6.0 square feet (0.56 m2) of media surface area per ten inch length for optimal performance
Highly tapered asymmetric pore structure provides excellent flow rate and dirt holding capacity
Cost-effective absolute filtration for vent applications - not integrity tested
Rigid, molded cage protects pleated media and strengthens structural stability
Manufactured in state-of-the-art white room for high purity
Complies with Food & Drug Administration’s CFR criteria for food & beverage contact.
Meets USP Class VI Biological Test for plastics
Available in common and end cap configurations to fit most filter housings
Produced in standard lengths up to 40 inches

Tank Ventilation
Process Gases
Compressed Air

Pore Sizes 0.2 microns absolute retention
Nominal Lengths 9.75” (24.7 cm), 10” (25.4 cm), 20” (50.8 cm),30” (76.2 cm), 40” (101.6 cm)
Outside Diameter 2.67” (6.78 cm)
Inside Diameter 1.0” (2.54 cm)
Media Surface Area
6.0 sq.ft. (0.56 m2) per 10 inches filter length
Gaskets/O-rings

Silicone, Buna N, EPR, Viton, Teflon Encapsulated Viton (O-rings only)

Materials of Construction

Filter Media: Hydrophobic Polysulfone
Outer Cage Polypropylene
Inner Core: Polypropylene
End caps: Polypropylene

Maximum Operating Temperature 176˚F ( 80˚C)
Recommended Change-out Differential Pressure

35 psid (2.4 bar)

Maximum Differential (Collapse) Pressure

Forward: 75 psid @ 70˚F (5.2 bar @ 21˚ C)
Reverse: 40 psid @ 176˚F (2.8 bar @ 80˚ C)

Sanitization and Sterilization

Hot water at 175˚F (80˚C) at 5 psid for 30 minutes
In-line steam at 257˚F (125˚C) @ 1 psid (0.7 bar) for 30 minutes
Autoclavable at 257˚F (125˚C) for 30 minutes

FDA and USP Compliance

All materials comply with the requirements of Food and Drug
Administration Title 21 of The Code of Federal Regulations 174.5,
177.1520 and 177.1630. All components
