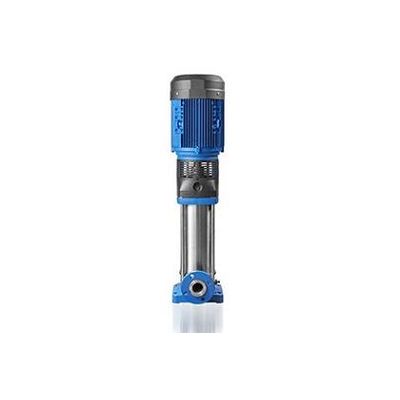

Masdaf - Model Hexa - Vertical Stainless Steel Pumps
Design: Hexa series consist of vertical, staged pumps. All parts which come into contact with water are made of stainless steel. Suction and discharge flanges are along the same axis. Simple body and perfect balance provides for low noise and vibration. Mechanical seal is completely leakage proof. Body, impeller and shaft are stainless steel. Energy savings with frequency control devices. High performance, safe operation, easy maintenance.
- Suction Flange: DN 32-DN 100
- Discharge Flange: DN 32-DN 100
- Flow Range: 2-110 m3/h
- Head (max): 30 bar
- Speed Range: 2900-3600 rpm
- Ambient Temperature: Up to +40°C
- Fluid Temperature: From -15°C to +120°C
- Apartments and residences.
- Schools, business centers and small industrial installations.
- Demineralized water systems
