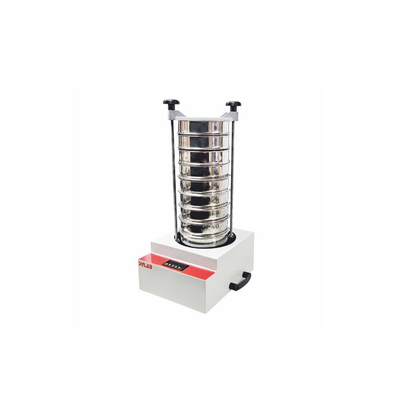

Sylab - Model SYVS 200 -Vibratory Sieve Shaker
Sylab`s Vibratory Sieve Shaker is a sophisticated laboratory instrument designed for precise particle size analysis using a series of standard test sieves. This advanced sieve shaker facilitates accurate separation and sizing of particles, essential for quality control and research applications. The instrument works by generating controlled, three-dimensional vibrations that move a stack of test sieves in a consistent and efficient pattern.
Sylab`s Vibratory Sieve Shaker is engineered for precise dry and wet sieving, enabling quantitative distribution analysis of solid powders. and effective separation of sample quantities of up to 3 kg. With a measurement range from 20 microns to 25 mm, this shaker supports test sieves with diameters of 100, 150, 200, and 203 mm.
- Measuring range : 20 micron to 25 mm
- Max.Sample quantity : 3Kg
- Capacity : Compatible with up to 8 test sieves of 200 mm diameter, along with a receiver & lid. Sieves with diameters of 100, 150, and 203 mm are also supported.
- Sieve motion : 3D electromagnetic
- Suitable for dry & wet sieving : Yes
- Amplitude : 0 – 3 mm (max amplitude depends on load), set digitally 0–9 steps
- Timer : Digital – 0 sec to 99 min 59 sec
- Interval : Programmable function
- Memory Function : 10 programs
- Dimensions : 323 x 408 x 215 (W x D x H in mm)
