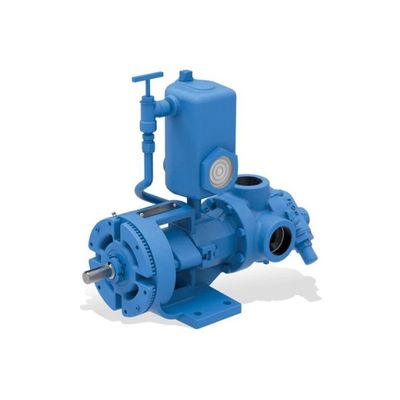

Rogers - Model 4924A Series -Viking Pump - Ammonia Specific Pumps
The 4924A Series positive displacement pumps offer safety, reliability and high efficiency in refrigeration ammonia recirculation applications. The 40924A Series provides reliability, safety and efficiency. A double mechanical dynamic shaft seal located between the bearings ensures minimum possible shaft run-out, with a pressurized barrier fluid system and O-ring type static seals is used to achieve the highest level of safety. Reliability is ensured by slow speed operation and low differential pressures, which maximize bearing and seal life. The internal gear pump technology provides a more efficient solution compared to centrifugal pumps.
Most popular related searches
internal gear pump
pressure relief valve
positive displacement pump
oil barrier
relief valve
pump technology
centrifugal pumping
lubricant system
gear pump
displacement pump
- Pressurized oil reservoir ensures barrier between inboard and outboard seals
- Sight glass enables easy verification of oil level
- Return-to-tank pressure relief valve prevents overpressure
- Static o-ring seals between casing, head and bracket provide superior joint sealing.
- Double mechanical seal with oil barrier for maximum safety
- Lubricated idler bushing with pressure lubrication system (K, KK, LQ, LL sizes) provides constant film of liquid between idler pin and bushing for long life, regardless of pump rotation
- Rigid, one-piece cast iron bracket with seal between bearings helps prevent misalignment to ensure long seal life
- Rotatable bearing housing simplified end clearance adjustment
