Numak - Visco Flowmat Pumps

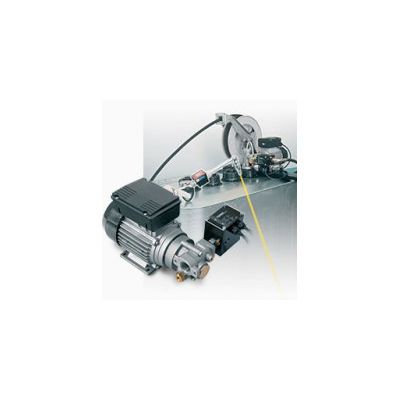

The new series of pumps Viscomat with manostat satisfies the exigences of make distribution with a self-priming pump constant flow with automatic switch-off at the end provision. The group consists of a mechanical pump to inner profile with ac motor, integrated with a manostat. At the end the pump remain in function for a few seconds in such a way as to allow any operations of refuelling and then turning off.
Pumps at mechanism with manostat. Range until to 14 lt/min, viscosity until to 2000 cSt
- Fluid: Oil
- Good flow rates with high pressures
- Absence of pulse
- Regularity of flow
- Noise operation
The manostat activates the pump to the achievement of a minimum pressure and turns off the pump to achieve a maximum pressure , which is lower than the pressure of bypass of the pump. The pressure switch is equipped with a safety valve which limits the maximum pressure of the plant to 10 bar.
Find applications for both individual points of provision both on fixed installations of distribution
- Range from 9 and 14 lt/min
- Pressure from 12 and 25 bar
- ON/OFF automatic
- Regulation flow by an absence of pulsation
- Loudness <65db
- Self-priming pump
- Pump body in aluminium
- Steel gears
- Mechanical sea on the motor shaft
- By-pass valve incorporated
- Aspiration mouth from 1" BSP female and in exit from 1"female
- Self-priming incorporated
- Manostat at 2 different pressure with a security valve incorporated
- Regolation of Max pressure
