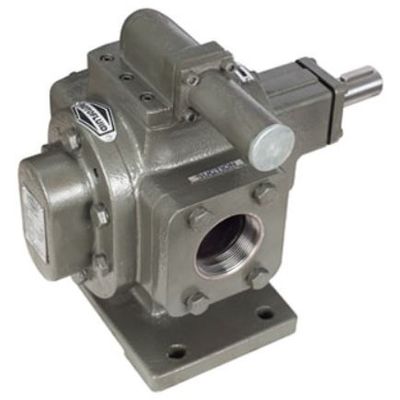

Fluid Tech - Model FTNX / FTBX -Viscous Liquid Gear Pump
Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FTNX/FTBX” (Rotary Pump - Viscous Liquid Gear Pump) which is heavy duty flange and foot mounting type positive displacement rotary gear pump. Model “FTNX/FTBX” is modified version of Model “FTRN/FTRB” to achieve high pressure. These pumps having doubled helical finished gears and hardened & ground shafts. Due to double helical gear it prevent axial load and side thrust which help to increase life and performance of pump. Model “FTBX” is a bush bearing type pump which can be used for viscous liquid having sufficient lubricating value for intermittent duty; however for continuous duty pump have needle roller bearing in Model “FTNX” and it will be selected for liquid having low viscosity, power lubricating values.
In these pumps size ½" to 2 ½" are provided with thread at end of suction & delivery and they are available with foot or flange mounting, But in size 3" to 4" are provided with flange at the end of suction & delivery and they are available with foot mounting only. These pumps can be operated up to pressure of 20 kg/cm² with 5.0 LPM to 900 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200°c.
- High pressure pump offered to 20 Bar.
- Heavy duty gear pump design for continuous application.
- Modification tooth profile enhances the tool life.
- Floating gear design ensures uniform load distribution.
- Heavy duty gear pump double helical design prevent axial load and side thrust.
- Shorter bearing span reduces bending effect.
- Low leakage path by design improve volumetric efficiency.
- Power plant.
- Steel plant.
- Cement plant.
- Bitumen plant.
- Petroleum industries.
- Refineries.
- Pumping station.
- All kind of liquid loading and unloading.
