VSS - Hybrid Nozzle Venturi Scrubber System

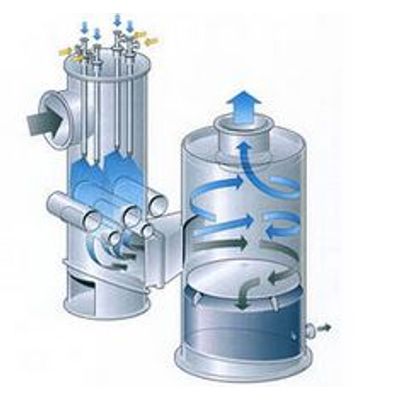

This Venturi scrubber (see illustration) is a compact, reliable construction which implements highly efficient separation of fine dusts with near to zero pressure loss.

Fine dust and aerosol separation is possible for particle sizes in the submicron range, as well as simultaneous gas absorption, for emissions which, besides dust, show proportions of oils, particulate matters, acids or water vapour.

At a grain size of 1 μm, 99% of the particles may be separated.

The simple construction allows trouble-free retrofitting. Existing fans usually do not need to be replaced.

Volume flows of 100 m³/h up to 180.000 m³/h can be treated. Typical application areas are:

• Purification of flue gas from incineration plants for solid and liquid chemical waste
• Exhaust gas cleaning in pyrolysis plants
• Fine dust separation during thermal process gas removal in the production of semiconductors
• Separation of acid- and salt aerosols (e.g. HCl, H₂SO₄, SO₃, H₃PO₄, NH₄Cl, SnCl₂, etc.)
• Separation of ferric oxide dust and HCl aerosols from pickle regeneration plants
• Dust removal from sludge drying plants, exhaust gas cleaning in coating plants for glass bottles and flat glass
• Paint pigment production
• Drying plants in the chemical industry
• Exhaust gas cleaning in roasting plants for sulphide ores and in ore agglomerating plants
• Exhaust gas cleaning in the non-ferrous metal industry (melting works, metal recycling)
• Separation of fine dust and toxic gases from laser machining

The advantages of the system at a glance

• Compact, cost-effective construction
• High operational reliability
• High separation efficiency at a low gas-related pressure loss
• Simultaneous dust and gas separation
• Perfect energetic effectiveness
• Optimum availability due to low susceptibility to plugging
• Easy and favourable retrofitting
