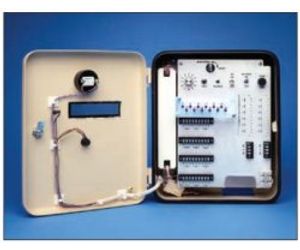

Water Alert - Model WM-6(T) -Wall Mounted Water Alert Monitor
The WM-6(T) and WM-12(T) are used to monitor areas 2400 to 6600 Sq. Ft.. The monitors are surface wall mounted for simple installation. All hardware, including a 5 ft. length of wire duct, installation/maintenance manuals and warranty are included with the monitor.
WM-6(T) - Wall mounted Water Alert Monitor / Power Supply. Unit shall be capable of powering, monitoring and testing up to six SS-2100 Water Alert detectors. Unit will provide indication of activating detectors with an audible alarm, LED readout and DPDT relay transfer. Relays rated at 28V @1. Amp , (200V Max.). Unit shall contain internal battery backup capable of 4 days monitoring without AC power. All mounting hardware including 5 ft. section of wire duct, installation / operation manuals and warranty to be included with unit. 5 year warranty minimum. Unit shall be provided by
Monitors, powers and tests 6 / 12 SS-2100 or VR-2100 Water Alert detectors.
- Wall mounted
- Test feature
- Visual and audible alarms
- DPDT Relay contact outputs
- Battery backup
- Key Reset switch
- 5 Year Limited Warranty
- Made in the USA
- Monitor Input Voltage/Current: 115VAC 10%, 60Hz, .2Amp max.
- Monitor Output Voltage: 9VDC (To detectors)
- Monitor Audible Alarm: 85db at 3 feet
- Input: UL listed input transformer, Terminal strip hard wired.
- Dimensions: 10"Wx5"Dx12"H
- Weight: 20lbs.
- Construction: NEMA 4 steel, Oven baked textured beige finish.
- Screw type terminal strip wire connection.
- Warranty: 5 Year Limited
