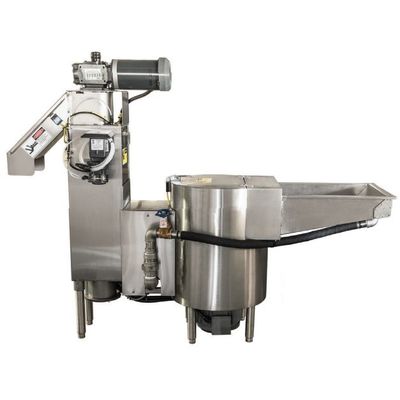

Somat - Model SPC-50S -Waste Reduction System
The Somat SPC-50S Waste Reduction System processes up to 900 lbs. of food service waste per hour providing an economic and efficient answer to cutting the high and ever increasing costs associated with waste handling. Somat Pulping Systems are engineered to reduce foodservice waste volume by an 8 to 1 reduction (up to 85%.) Compostable waste enters the pulping tank via the feed tray or scrapping trough where it mixes with water and is ground into a slurry. The slurry is fed to the Hydra-Extractor for de-watering and the result is a semi-dry pulp discharged into a haul-away container or a Somat Dehydrator for additional reduction. The extracted water is recovered and returned to the pulping tank for re-use by the tray or trough.
- Hinged lid pulper with limit switch
- Hydra-Extractor
- 3 HP recirculating pump
- Valve package
- Chemical additive pump
- Som-A-Trol control panel
Pulper:
- 23" diameter, 39" high max (legs fully extended)
- Polished stainless steel tank
- Hinged lid with limit switch
- 3⁄8" stainless slurry chamber
- 5 HP TEFC direct drive motor
- Internal collection box
- “Hypoint” style cutting mechanism, featuring:
- Stainless steel impeller
- Two hardened corrosion resistant alloy rotating blades
- Three carbide stationary blades
Hydra-Extractor
- Welded stainless steel construction
- Stainless steel adjustable legs
- 2 HP TEFC drive motor
- 20:1 gear reducer
- 3HP TEFC recirculating pump
- Chemical pump
- 6" stainless steel auger with nylon brush edge
- Reinforced stainless steel screens
- Automatic shutdown timer
- Automatic rinse system
- Discharge chute with safety switch
Valve Package:
- All valves required for operation including fresh water, return and drain lines.
Som-A-Trol Electrical Control Panel:
- UL approved stainless steel NEMA 4 panel with all components pre-wired to internal terminal strip. Push Button control station on panel door (remote control station optional). Panel to be wall mounted with field connection to pulper mounted junction box.
- Water flushed feed tray
- Trough feed connection
- Feed tray cover
- Prison package
- Under dish table unit
- Vibration pads
- Remote push button station
- Grabber magnets
- 208/60/3
- 230/60/3
- 460/60/3
International options available, consult factory
