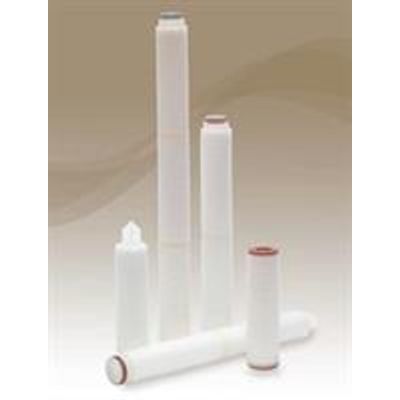

Shelco MicroVantage - Model WGAS Series -Water Grade Polyethersulfone Membrane Filter Cartridges
FromShelco Filters
Polyethersulfone Membrane Filter Cartridges for Economical Applications. Cost-effective Polyethersulfone membrane filter for high purity. Ideal for water grade filter or high purity applications where absolute retention is essential at an economical cost. Absolute rated membranes from 0.03 to 1.0 microns. High surface area for maximum throughput and long service life. Constructed of FDA listed materials and meets USP Class VI Biological Test for plastics. 6 sq. ft. of media (non-flushed).
Most popular related searches
polyethersulfone membrane filtration cartridge
membrane filtration cartridge
membrane filtration
filter cartridge
membrane cartridge filter
filter membrane
biological testing
cartridge filter
process water
water bottling
- Absolute retention ratings from 0.3 to 1.0 microns
- 6.0 square feet (0.56 m2) of media surface area per ten inch length for optimal performance
- Cost effective absolute filtration for less critical applications - not integrity tested
- 100% polypropylene construction offers wide range of chemical compatibility
- Rigid, molded cage protects pleated media and strengthens structural stability
- Manufactured in state-of-the-art white room environment for high purity
- Complies with Food & Drug Administration’s CFR criteria for food & beverage contact
- Meets USP Class VI Biological Test for plastics.
- Available in common end cap configurations to fit most filter housings
- Produced in standard lengths up to 40 inches
- RO Pre/Post Filtration
- Food & Beverage
- DI Water
- Bottled Water
- Plating Solutions
- Microelectronics
- Specialty Chemicals
- Process Water
- Water & Wastewater
- Cosmetics
- Pore Sizes 0.03, 0.1, 0.2, 0.45, 0.65, 1.0 microns absolute retention
- Nominal Lengths 9.75" (24.7 cm), 10" (25.4 cm), 20" (50.8 cm), 30" (76.2 cm), 40" (101.6 cm)
- Outside Diameter 2.67" (6.78 cm)
- Inside Diameter 1.0" (2.54 cm)
- Media Surface Area 6.0 sq.ft. (0.56 m2) per 10 inches filter length
- Gaskets/O-rings
- Silicone, Buna N, EPR, Viton, Teflon Encapsulated Viton (O-rings only)
- Materials of Construction
- Filter Media: Asymmetric Polyethersulfone
- Outer Cage Polypropylene
- Inner Core: Polypropylene
- End caps: Polypropylene
- Maximum Operating Temperature 176˚F ( 80˚C)
- Recommended Change-out Differential Pressure
- 35 psid (2.4 bar)
- Maximum Differential (Collapse) Pressure
- 75 psid @ 70˚F (5.2 bar @ 21˚C), 40 psid @176˚F (2.8 bar @ 80˚C)
- Sanitization and Sterilization
- Hot water at 175˚F (80˚C) at 5 psid for 30 minutes
- In-line steam at 257˚F (125˚C) @ 1 psid (0.7 bar) for 30 minutes
- Autoclavable at 257˚F (125˚C) for 30 minutes
- FDA and USP Compliance
- All materials comply with the requirements of Food and Drug
- Administration Title 21 of The Code of Federal Regulations 174.5,
- 177.1520 and 177.1630. All components meet current USP Class
- VI biological tests for plastics
