Griltex - Model GXP Plus N10 -Waterproofing Geomembrane

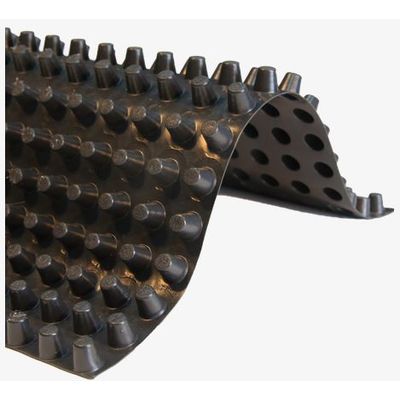

The geomembrane GXP Plus N10 made from high density polyethylene (HDPE) provides the optimal control of humidity and ventilation of covered surfaces of foundation walls, which is ensured by embossing with the compaction of over 3300 items/m² . It is especially useful in areas exposed to high ground pressures (e.g. deep foundations, access roads over underground garages).
Most popular related searches
waterproofing
waterproofing membrane
drainage capacity
geomembrane
waterproof geomembrane
geotextile
controlled ventilation
humidity control
- Increased compression strength and breakdown strength high ventilation capacity
- It facilitates breathing of walls and underground structures and increases heat insulation effectiveness
- It enables a uniform distribution of loads caused by ground pressure
- It is applied in fire roads
- Material: Extruded HDPE foil (polyethylene high density)
- Roll width: 2,0 m
- Surface mass: 600 g/m²
- Embossing heigh: 20 mm
- Number of embossings: approx. 3360 /m²
- Compression strength: 400 kN/m²
- Temperature resistance: -40 to +80o C
- Air space between buckets: 7,9 l/m²
- Drainage capacity (if it’s connected with the geotextiles): 4,8 l/s/m 288 l/min/m 17 280 l/h/m
