- PFS - Model WX - Wedge Flow Meter
PFS - Model WX -Wedge Flow Meter

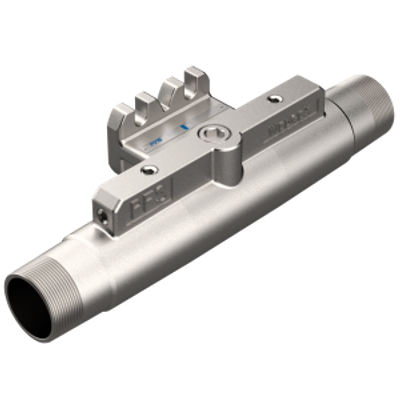

The Wedge-X flow meter design is derived from the standard wedge flow meter, but allows for a direct coupled differential pressure transmitter, and a replaceable wedge which results in a compact and cost-effective unit that virtually eliminates both gauge line induced and plugged tap related measurement errors.
+/- 4.00% Uncalibrated Uncertainty
Integral Manifold, Replaceable Wedge
- Line size: 2 inches
- Head loss % of Differential: 25 to 60 percent
- Recommended pipe Reynolds number: Must be greater than 5000 for basic accuracy
The replaceable wedge feature is an extremely fast and cost-effective way of addressing situations like erosion of the wedge. A wedge can also be replaced with a different size to increase or decrease dP as needed.
The wedge flow meter is intended for high-density, slurry type, or contaminated line fluid applications, including difficult-to-meter, air entrained liquids. WedgeX meters can be customized to measure fluids over a large range of pressures and Reynolds numbers; making them ideal for many applications, including shale gas extraction.
- Line Size: 2 inches
- Head loss % of Differential: 25 to 60 percent
- Basic Accuracy (% of Total): (Wet Calibrated) +/- 0.50, (Uncalibrated) +/- 3.00
- Recommended pipe Reynolds number: Must be greater than 5000 for basic accuracy
- Required Straight Piping: Consult PFS for required US & DS piping based on your specific application
- Beta Range: 0.20 through 0.80
- Useful Service Life: Medium to Long depending on service
- Service Functional Limits: Clear Liquids, Gas and Steam
- Applications: Liquids with suspended solids, Chemical and Petrochemical industry, Pulp and paper industry, Mining, Oil, Gas, Refineries, High Viscosity Corrosive and Abrasive Liquids
- Common Materials: Carbon Steel, Stainless Steel
