PFS - Model WM -Wedgetype Flow Meter

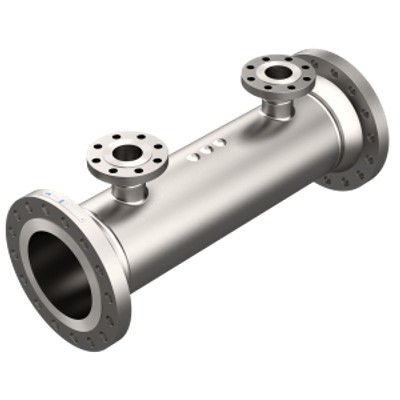

The WM wedge flow meter consists of a pipe inside which a V-shaped wedge is fitted. The basic system consists of a piping configuration into which a constriction “wedge” is fabricated thereby leaving an open segment of a known height. They are used for various process applications and conditions, especially slurries, suspended solids or viscous liquids. They can also be used for clean liquids, gas, air and steam.
Most popular related searches
flow meter
differential pressure transmitter
pressure transmitter
pressure monitoring
corrosive liquid
clean air
industrial gas
flow monitoring
+/- 4.00% Uncalibrated Uncertainty
Dirty liquids and Slurries
- Line size: 1/2 to 30 inches
- Head loss % of Differential: 25 to 60 percent
- Recommended pipe Reynolds number: Must be greater than 500 for basic accuracy
Low pipe Reynolds flow applications can be measured with relative accuracy and the discharge coefficient is stable through the application range. The differential pressure is measured by a differential pressure transmitter.
- Line Size: 1/2 to 30 inches
- Head loss % of Differential: 30 to 85 percent
- Minimum pipe Reynolds number: Must be greater than 500 for basic accuracy
- Required Straight Piping: Consult PFS for required US & DS piping based on your specific application
- Beta Range: 0.25 through 0.80
- Useful Service Life: Medium to Long depending on service
- Service Functional Limits: Clear Liquids, Gas, Steam, Slurries, Suspended Solids, Viscous Liquids
- Applications: Liquids with suspended solids, Chemical and Petrochemical industry, Pulp and paper industry, Mining, Oil, Gas, Refineries, High Viscosity Corrosive, Abrasive Liquids
- Common Materials: Carbon Steel, Stainless Steel
- Other Available Materials not limited to: Aluminum, Zirconium, Hastelloy, Monel, Duplex SS, Titanium, Tantalum, 321SS, Chrome Moly
