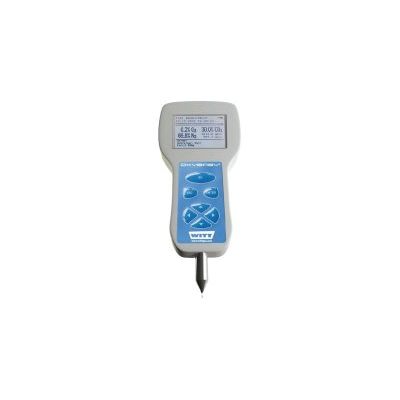

WITT Oxybaby - Mobile Handheld Headspace Gas Analyser
OXYBABY O2/CO2 is the practical battery-operated hand held gas analyser for measurement of modified atmospheres in food packages (MAP). The gas analyser OXYBABY is the perfect device for mobile, fast and accurate samples: at the packaging machine, in packages or in the laboratory. The small, high capacity gas analyser features ergonomic design, short sample times, minimal sample gas requirements and is easy to use.
The USB port or the optional Bluetooth interface of the OXYBABY provide a fast and easy data communication for data transfer or for the connection of a separate printer. More OXYBABY options available e.g. barcode reader, documentation software, can piercer for measurements of bottles or cans.
The OXYBABY also has a unique feature to avoid wrong measurements - permanent flow control with automatic alarm in case of a needle or filter blockage.
Gas analyser OXYBABY is available as basic version M+ or as premium version 6.0.
Benefits
- minimum sample gas requirement for smallest packs
- integrated data log of the last 500 measurements
- product administration up to 25 users, 100 product names and 50 packaging lines
- alternatively a pressure indication can be selected
- cordless operation using rechargeable batteries
- data transfer and charge of batteries via USB port
- faster workflow by an optional integrated bar code scanner for product data
- sample flow control with warning in case of blocked needle
- upgraded simple one hand operation
- measurement alternatively also by hose
- easy to clean
- large illuminated graphic display
- multilingual menu guide
- integrated needle cover to protect the needle and user
- long lifetime of O2 sensor (approx. 2 years)
- low maintenance costs
Complete in carrying case
- charging device
- CD-ROM with: - OBCC-Software (demo-version) - operating instructions
- 2 spare needles
- 2 spare filters
- set of 100 rubber seals
- case dimensions (HxWxD): approx. 325x385x115 mm (12.79x15.16x4.53 inch), case weight: approx. 1.7 kg
Options
- hose with Luer-Lok connection for stationary measurement
- data cable
- integrated Barcode-Scanner
- Bluetooth (e.g. for separate printer)
Skills of OXYBABY® 6.0 (compared to OXYBABY® M+)
- minimal sample gas requirement (from 2ml up)
- complex administration
- five times larger data log
- data export and analysis software
- smart handling with key panel and display ‚pro‘
- Bluetooth and Barcode-Scanner by option
