Custom Sensors & Technology (CST)
Sample handling solutions for oil in water analyzer sector - Monitoring and Testing

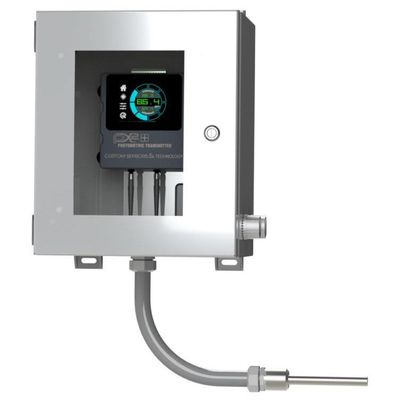

The Oil in Water Analyzer combines the PX2+ with our Front Surface Fluorescence Probe to create an analyzer that continuously and accurately measures the presence of oil in water. The all-inclusive Oil in Water Analyzer come preassembled with a PX2+ photometer attached to our Front Surface Fluorescence Probe via fiber optic cables. The analyzer is less susceptible to noise due to bubbles, reabsorption, and turbidity in the sample. The Oil in Water Analyzer is the ideal solution for your in-line process monitoring needs.
Most popular related searches
oil-in-water analyzer
oil-in-water
water analyzer
oil-in-water monitoring
PPM oil-in-water
cooling tower water
ballast water discharge
oil analyzer
boiler feed water
sample handling system
- Measurement Principle: UV Fluorescence
- Range: 0-3000 ppm Oil in Water
- Accuracy: ± 1% of full scale
- Repeatability: ± 0.5% of full scale
- Light Source: Xenon Flash Lamp
- Detector: PMT and Silicon Photodiode
- Display: 3.2″ Capacitive Touch Screen Display
- Alarms: Contact Closure (60 VDC, 0.75 A max.)
- Analog Output: 4-20 mA, isolated
- Analog Loop Resistance: 500 ohms @ 24 VDC
- Digital Output: USB-B, RS-485 (Modbus)
- Power Consumption: 8.5 watts (max.)
- Power Requirements: 24 VDC nominal (12-48 VDC)
- Enclosure Material: NEMA4X Anodized Aluminum
- PX2+ Size: 5” H x 5.8” W x 2.8” D
- Temperature: 5-50C
- Weight: 3.5 lbs. (1.6kg)

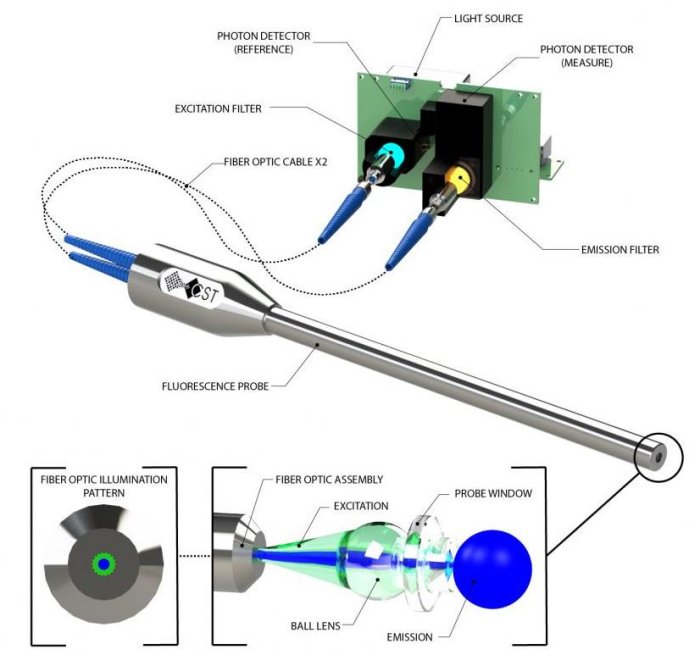

Front Surface Fluorescence Probe
- Wetted Materials: 316SS Body, Sapphire Window, and Viton Seal
- Temperature Rating: 0-400°F
- Pressure Rating: 2,000 psi
- Insertion Length: 8.66″ / 220 mm (custom insertion lengths available upon request)
- Wastewater Treatment
- Boiler Feed-water
- Refinery Run-off
- Ballast Water Discharge
- Cooling Tower Water
