AGREM designs controlled drainage systems to effectively manage your water table regardless of your fields topography. By using multiple control gates dividing a field into elevation zones, AGREM controlled drainage systems are the best means to block nutrient runoff and conserve natural precipitation during the growing season. These systems are further able to be upgraded into subirrigation systems.

Our goal in water management design is to give you the options you need to make the best decision for your farm. To do so, we have a multiple step process that includes our expertise and your feedback. First, we gather soil and survey data for your field. Next, we prepare a series of preliminary maps showing different water management options for your consideration. We then work with you to modify those preliminary designs to develop a water management system that meets your goals for the lowest possible cost. The final plans are then developed for installation by you, your local contractor, or an AGREM Professional Contractor.

Most fields benefit from both surface and subsurface drainage. Subsurface drainage, even at high intensities, often cannot handle all rain events alone. Incorporating surface drains within a subsurface water management system allows for methods to remove excess water effectively and also reduces the risk of soil erosion, which can destroy a subsurface water management system over time. AGREM offers several options in surface drainage design that can be included with subsurface water management systems.

Conventional Drainage Systems are the most basic form of pattern tile drainage systems. These systems provide relief drainage to a field with laterals placed according to soil types and your desired drainage coefficient. If possible, these systems are designed to minimize the amount of mains required to provide outlets to laterals. Laterals are further extended to their greatest possible length. By doing so, conventional drainage systems are the lowest cost method of providing relief drainage throughout a field.

AGREM Interceptor Drainage Sytems are a type of conventional pattern tile where laterals are placed as much as possible to intercept water flows. By placing laterals perpendicular to subsurface water flow, laterals intercept water flow, such as side seeps, and remove water as it flows down hill. This allows for more efficient water removal and reduces ponding. Interceptor systems are not as efficient as Contour Drainage Systems but are more efficient than Conventional Pattern Systems. Interceptor systems are designed according to your soil type and provide consistent drainage through your field.

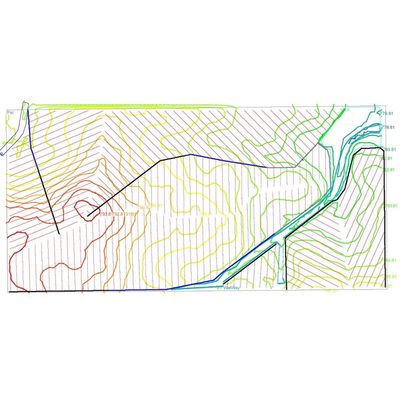

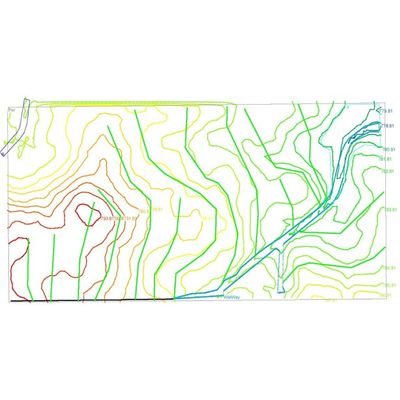

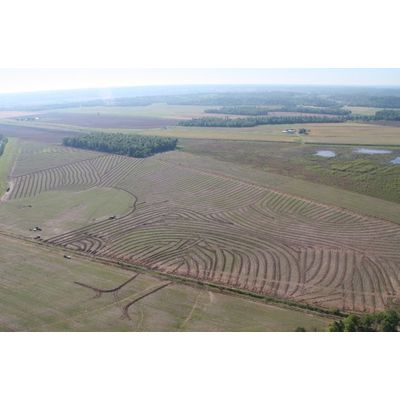

AGREM Contour Drainage Systems are the most efficient and effective drainage systems in the market today. By placing tile laterals along the contours, our tile intercepts the flow of water in your field, thereby maximizing the effectiveness of the tile installed in removing excess water. In addition to interceptor drainage, tiles are placed at a uniform depth throughout your field. This provides relief drainage to fields with topographical variation. Additionally, AGREM Contoured Drainage Systems can be upgraded to AGREM Controlled Drainage Systems or AGREM Subirrigation Systems, allowing for long term expansion of your water management needs.

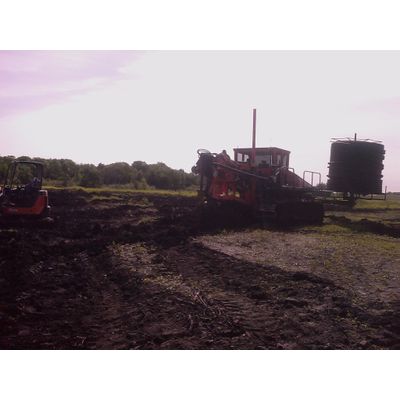

AGREM Installation Software is a low cost method to install AGREM designed systems using laser or RTK machine control software. With this software, you will be able to take the AGREM design to the field, install with the specifications right in front of you, and record while installing.

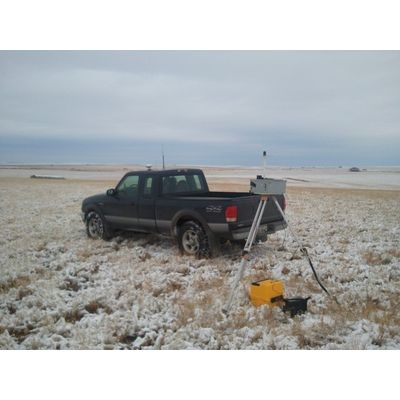

AGREM Field Software combines the capabilities of the AGREM Installation Software and the ability to collect and record RTK survey points used for the creation of topographical maps. With these points, you can then send the survey to AGREM to generate water management designs for your installation. Once the designs are complete, all you need to do is import the design and you are ready to install!

Want to design your own pattern tile systems? Want to become part of the AGREM Professional Contractor Network? Then you need to check out AGREM Professional Software. This software package allows you to go from survey to installation. It also includes the training you need to install AGREM Advanced Water Management Systems for your clients. Call us today to talk more about this option!
