BinMaster Sensors and Technologies LLC products

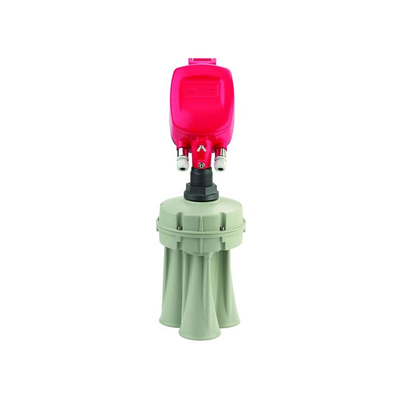

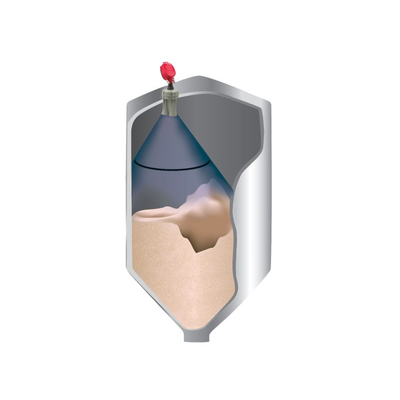

IECEx/ATEX 3D acoustic level sensor RL - standard with 7.67” diameter horn, 20-32 VDC, 4-20 mA output, Modbus, and RS-485 communications. Determines the average volume of stored materials based on a 15º beam angle in silos up to 14’ diameter and 200’ tall. Unit comes with internal LCD display and 3DVision software. Hazardous location approved for European Union and global applications.  One-year warranty.

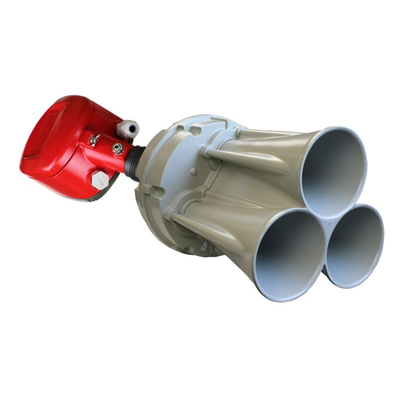

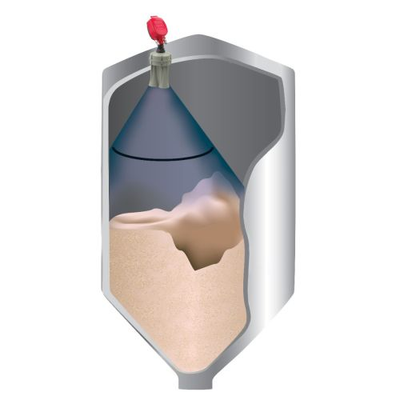

IECEx/ATEX 3D Level Scanner - MV with 7.67” diameter horn, 20-32 VDC, 4-20 mA output, Modbus, and RS-485 communications. Accurate readings of level and volume of stored materials based on a 70º beam angle. Wider beam angle is appropriate for silos up to 45’ in diameter and 200’ tall, and where improved accuracy in smaller silos is required. Identical to the Model 3DLS-M, with the addition of a special tool that allows 3D graphical representation of the stored contents for display on a remote computer screen. Unit comes with internal LCD display and 3DVision software. Hazardous location approved for European Union and global applications.  One-year warranty.

IECEx/ATEX 3D Level Scanner - M with 7.67” diameter horn, 20-32 VDC, 4-20 mA output, Modbus, and RS-485 communications. Accurate readings of level and volume of stored materials based on a 70º beam angle. Wider beam angle is appropriate for silos up to 45’ in diameter and 200’ tall, and where improved accuracy in smaller silos is required. Unit comes with internal LCD display and 3DVision software. Hazardous location approved for European Union and global applications.  One-year warranty.

IECEx/ATEX certified 3DLevelScanner-S with 7.67” diameter horn, 20-32 VDC, 4-20 mA output, Modbus, and RS-485 communications. Determines the average volume of stored materials based on a 30º beam angle in silos up to 14’ diameter and 200’ tall. Unit comes with an internal LCD display and 3DVision software. Hazardous location approved for European Union and global applications. One-year warranty.

3D Level Scanner - MV with 7.67” diameter horn, 20-32 VDC, 4-20 mA output, Modbus, and RS-485 communications. Accurate readings of level and volume of stored materials based on a 70º beam angle. Wider beam angle is appropriate for silos up to 45’ in diameter and 200’ tall, and where improved accuracy in smaller silos is required. Identical to the Model 3DLS-M, with the addition of a special tool that allows 3D graphical representation of the stored contents for display on a remote computer screen. Unit comes with internal LCD display and 3DVision software. Hazardous location approved, FM listed for Class I, II, Division 1, Groups C, D, E, F & G. One year warranty.

3D Level Scanner - M with 7.67” diameter horn, 20-32 VDC, 4-20 mA output / Modbus, and RS-485 communications. Accurate readings of level and volume of stored materials based on a 70º beam angle. Wider beam angle is appropriate for silos up to 45’ in diameter and 200’ tall, and where improved accuracy in smaller silos is required. Unit comes with internal LCD display and 3DVision software. Hazardous location approved, FM listed for Class I, II, Division 1, Groups C, D, E, F & G. One year warranty.

3D Level Scanner - S with 7.67” diameter horn, 20-32 VDC, 4-20 mA output, Modbus, and RS-485 communications. Determines the average volume of stored materials based on a 30º beam angle in silos up to 14’ diameter and 200’ tall. Unit comes with internal LCD display and 3DVision software. Hazardous location approved, FM listed for Class I, II, Division 1, Groups C, D, E, F & G. One year warranty.

3D acoustic level sensor RL - standard with 7.67” diameter horn, 20-32 VDC, 4-20 mA output, Modbus, and RS-485 communications. Determines the average volume of stored materials based on a 15º beam angle in silos up to 14’ diameter and 200’ tall. Unit comes with internal LCD display and 3DVision software. Hazardous location approved, FM listed for Class I, II, Division 1, Groups C, D, E, F & G. One year warranty.
