BinMaster Sensors and Technologies LLC products

Swivel mounting plate with 9" diameter flange with 4" ANSI bolt hole pattern with a 12" sliding rod with a 1" NPS fitting at the bottom. The adjustable rod allows the sensor to protrude up to 12" into the vessel. The swivel range is up to 13° for aiming radar level sensors. The mounting plate is machined from 30% glass-filled polypropylene. The tube is made from glass-filled nylon. The sensor connection cable is threaded through the tube and then connected to the power source.

BinMaster swivel mount with 1.5" NPT swiveling ball and 9" mounting flange with 4" ANSI bolt hole for mounting and aiming non-contact radar or laser level sensors.

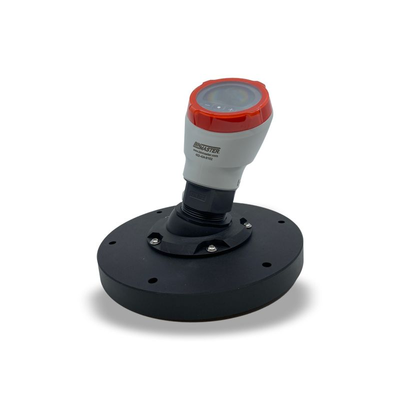

Swivel mounting plate with 8" diameter flange and 1.0" NPS ball. Swivel range up to 13° for aiming radar or laser level sensors. Mounting plate is machined from 30% glass-filled polypropylene.

Swivel mounting plate with 8" diameter flange with a 12" sliding rod with a 1.0" NPS fitting at the bottom. The adjustable rod allows sensor to protrude up to 12" in to the vessel. The swivel range is up to 13° for aiming radar level sensors. The mounting plate is machined from 30% glass-filled polypropylene. The tube is made from glass-filled nylon. The sensor connection cable is threaded through the tube and then connected to the power source.

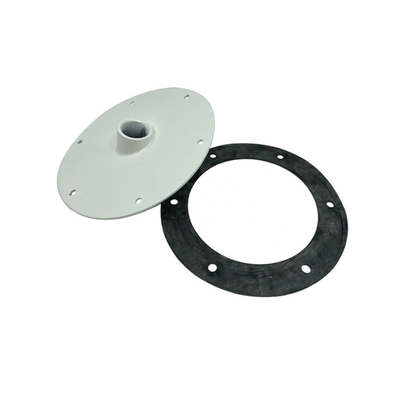

10° 1" NPS full coupler mounting plate kit. Contains white powder-coated mounting plate and neoprene gasket. Often used with CVR-600 or CNCR-190.

30° 1" NPS full coupler mounting plate kit. Contains white powder-coated mounting plate and neoprene gasket.

1.5” NPT plastic nut.
