Boreal Laser Inc. products

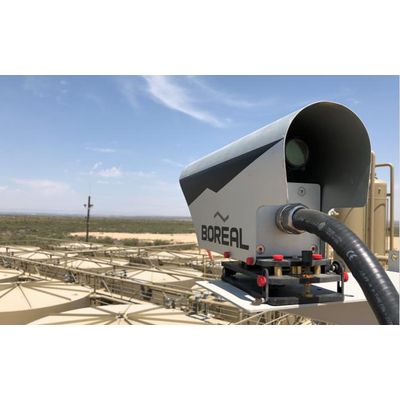

Used for Line-of-Sight Gas Detection: Path lengths range from 5 - 500 m (15 -1,500 ft). Use in Hazardous Area Applications: (A)Ex ib IIC T5 Tamb less than 70°C Gb (C1 Div1, G: A, B, C, D). Enhanced Detection Capabilities: Large Area Coverage, Fast Response, & Low MDL's. Remote Measurement Head: Paired with one of our GasFinder3 Instruments. When combined with one of the GasFinder3 Analyzers, it creates an Laser Based – Open-Path Gas Detector used in Industrial Leak Detection or Ambient Monitoring Applications.

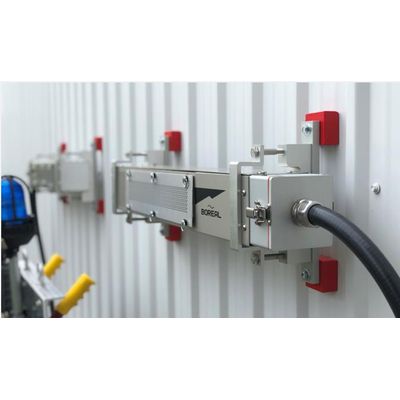

Used for Point Gas Detection: Laser Based - Fixed Point Gas Detection. Use in Hazardous Area Applications: (A)Ex ib IIC T5 Tamb less than 70°C Gb (C1 Div1, G: A,B,C,D). No Poisoning, Flooding, or Fouling: No consumable measurement sensor. Remote Measurement Head: Paired with one of our GasFinder3 Instruments. When combined with one of the GasFinder3 Analyzers, it creates a Laser Based – Fixed Point Gas Detection measurement for applications that require fast speed of response or immunity to poisoning/fouling.

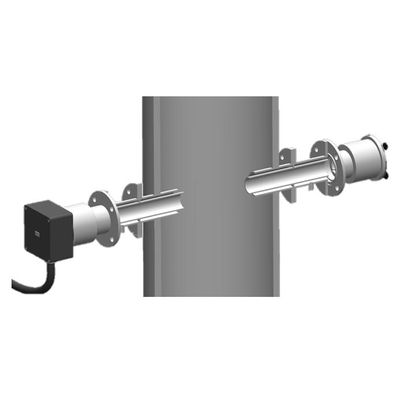

Non-Contact In-Situ Measurements: 3" 150# Raised Faced Flange Bolt-Up Pattern. Use in Hazardous Area Applications: (A) Ex ib IIC T5 Tamb less than 70°C Gb (C1 Div1, G: A, B, C, D). Quantifiable Volumetric Result: Confirmation of both gas type and concentration. Remote Measurement Head Paired with one of our GasFinder3 Instruments. Stack/Duct (SDX) Probe: When combined with one of the GasFinder3 Analyzers, it creates a direct and non-contact measurement within a stack or duct for quantitative or feedback control applications.

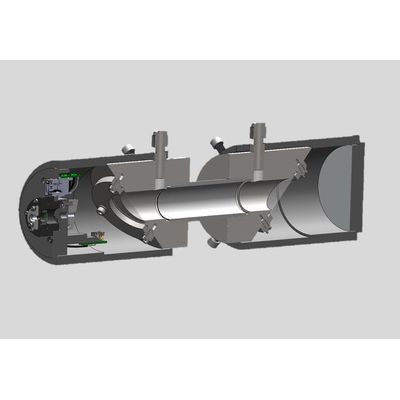

Analyze an Extractive Sample: Ideal for difficult for challenging applications. Use in Hazardous Area Applications: (A) Ex ib IIC T5 Tamb less than 70°C Gb (C1 Div1, G: A, B, C, D) . No Calibration + No Intervention: Due to the GasFinder`s Internal Reference Cell. Remote Measurement Head: Paired with one of our GasFinder3 Instruments. When combined with one of the GasFinder3 Analyzers, it creates a direct and non-contact extractive measurement for quantitative or feedback control applications.

Make an In-Situ Point Measurement: 3" 150# Raised Faced Flange Bolt-Up Pattern. Use in Hazardous Area Applications: (A) Ex ib IIC T5 Tamb less than 70? Gb (C1 Div1, G: A, B, C, D). No Sensor Poisoning: No consumable measurement sensors. Remote Measurement Head: Paired with one of our GasFinder3 Instruments. Insertable (IPX) Probe: When combined with one of the GasFinder3 Analyzers, it creates a direct and non-contact measurement within a stack, duct, tank, or enclosure for quantitative or feedback control applications.

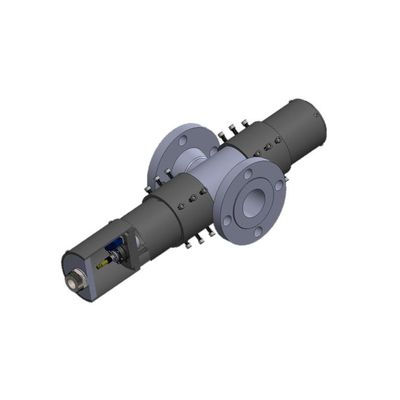

Direct + Non-Contact Measurement: 1-3" 150# Raised Face Flange Bolt-Up Pattern. Use in Hazardous Area Applications: (A )Ex ib IIC T5 Tamb less than 70°C Gb (C1 Div1, G: A,B,C,D) . Fast Speed of Response + Recovery New and independent result every single second. Remote Measurement Head: Paired with one of our GasFinder3 Instruments. In-Line (ILX) Probe: When combined with one of the GasFinder3 Analyzers, it creates a direct and non-contact measurement directly in the piped process for quantitative or feedback control applications.

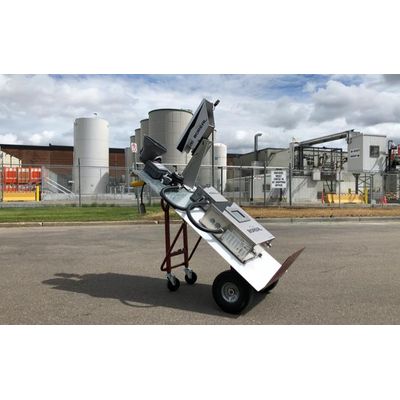

The GasCart supports a GasFinder Instrument along with the associated Measurement Head to create a customized monitoring or detection solution for your application. The GasCart has an option to include a Horn and Strobe to provide local annunciation and alerts. As your Boreal Laser representative about Rent, Lease, or Ownership options.

The GasFinder3-OP is the premier portable Laser Based – Open Path Gas Analyzer used by academics or environmental consultants to perform quantitative measurements. Use for Emissions Quantification: Use with multiple Atmospheric Dispersion Models. Monitoring Over Long Path Lengths: Path length from 5 - 500 m (15 - 1,500 ft). ±2% of Reading Accuracy: Unrivaled performance in all weather conditions. Rugged and Robust Design: Operational Temp: -55 to +65°C (-67 to 149°F).

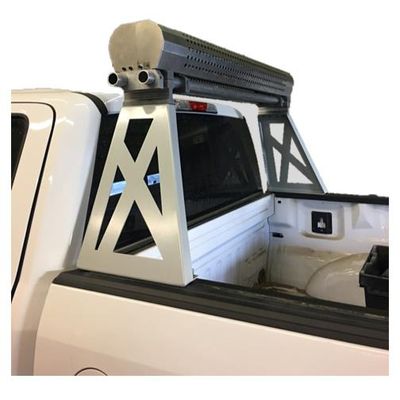

GasFinder3-VB (Vehicle Based) - Mobile Gas Detection System: Using laser-based gas detection technique. Fast Speed of Response + Recovery: New and independent result every single second. Overlay Data on Google Maps: Report the path travelled with concentrations. No Interference + No False Alarms: This only detects the specific target gas of interest. GasFinder3-VB: Can be mounted on just about anything that moves such a trucks, vans, cars, ATV, boats, etc. The GasFinder3-VB includes all of the equipment required to make the mobile based measurements.

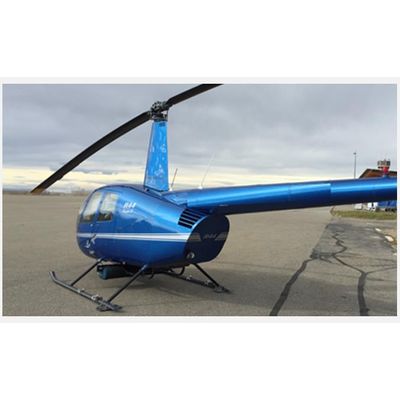

Ideal for Pipeline Leak Detection Fly along Natural Gas Pipeline Right-of-Ways. Quantifiable Volumetric Result Confirmation of both gas type and concentration. Superior Tolerance to Vibration Solid state electronics and proven robust design. Long Life Span and Robust Design Excellent Return-on-lnvestment (ROI). The GasFinder3-AB can be mounted on Bell 206B Long Ranger, Robertson R44, and A-Star AS350/AS355 Helicopters.
