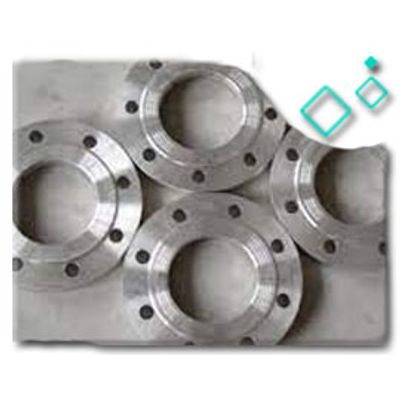

A reason why the slip on Flange is very popular is due to their cost being inexpensive, in comparison to weld neck flanges. A Class 300 SORF Flange is a ring that has been placed over the pipe end, with the face of the flange extending from one end of the pipe by enough distance in such a manner that a weld bead could be applied on the inside diameter of the flange. In addition to the inner diameter, the OD or outer diameter of a slip on flange is also required to be welded on its backside. As compared to a weld neck flange, generally slip on flanges are more easily aligned. Considered to be well suited for use in low pressure and temperature applications, the Carbon Steel Slip On Flange is available in large sizes, which could also be used to form connections with big-bore piping that has a storage tank nozzle.

Class 150 Socket weld Flanges are a category of pipe flanges that can be attached by inserting a pipe into the socket end of the flange after the application of a fillet weld around the top. This kind of flange attachment us what permits not only a smooth bore but also a better flow of the media i.e fluid or gas inside of the pipe in a system. Generally, a socket weld pipe flange is used on smaller sized pipes. Designed to withstand high pressured applications, these flanges are produced in different steel grades. Most common amongst them include stainless steel, carbon steel as well as alloy steel grades. However, the selection of the material used to manufacture the ASME B16.5 Socket Weld Flange will depend on the application it is intended for.

Dinesh Industries is a manufacturer and supplier of stainless steel pipe fittings in different grades and scales. We manufacture flanges of all types as well.  Our ASME B16.5 Blind Flange is used widely in applications where the pipeline has to be terminated. The blind end or the plate of the flange seals the connection so that the flow ends with the blind flange. As a leading Stainless steel blind flange manufacturer we supply these flanges in different types of stainless steels. The 304, 316 and duplex are some of the most commonly used materials for applications that use flanges.

ANSI B16.9 Elbow belongs to a range of pipe fittings that have a diameter of ½ inches through 48 inches. Pipe fittings are products that are used to connect pieces of pipes or piping components together without compromising the integrity of the whole piping. Dinesh Industries is a manufacturer and supplier of different pipe fittings. There are bends, couplings, elbows and so on. The ASME B16.9 Elbow make it applicable with small to medium size range of piping applications. There are different grades of materials used in the production of the fittings as well. The elbows come in different types, shapes and sizes as well.

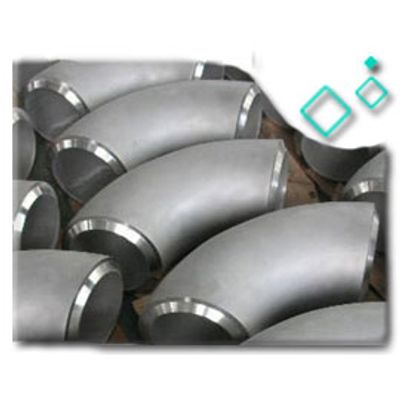

Elbows are a type of fastening device that could be used to change the direction of flow between two pipes in a system. Generally,  elbows are available with an angle of 22.5, 45 and 90 Degree. A 90 degree elbow dimensions are used in those instances, where the direction of the flow of media is to be altered to a course of 90 degrees. The 90 degree pipe elbow dimensions is a part of the ASME B16.9 used to construct a 90 degree elbow, which also takes into account the grade of material used, size, tolerance, markings etc.

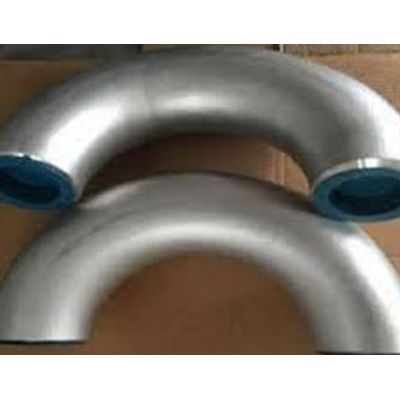

The main function of a Carbon Steel 180 degree elbow is to change the direction of the flow of media at an angle of 180°. Generally, the material used to make these elbows need to have good formability and ductile properties that make forging operations easier. Aside from having the aforementioned properties, a 180 Degree Elbow is a good conductor of heat and electricity and it has superior corrosion resistance to water. Hence, marine engineering is one of the industries that use copper elbows to a broader limit.

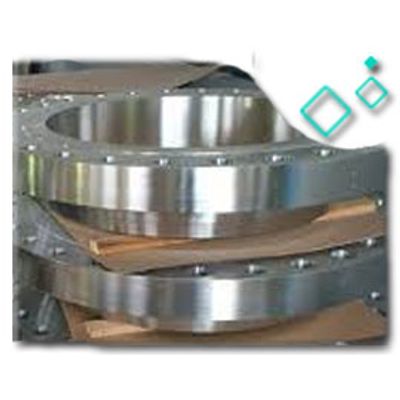

ASME B16.47  is a standard for steel flanges that have a large diameter. The size of the diameter ranges between NPS 26 through NPS 60. The latest version of the ASME B16.47 Flanges Dimensions provides dimensions and ratings in both metric as well as in inch units. Generally speaking, flanges belonging to standard ASME B16.47 Series A tend to be constructed much thicker, heavier and stronger as compared to ASME B16.47 Series B Flanges in the same size and pressure rating.

DIN or as known in its elaborated form  Deutsches Institut für Normung. DIN is a non profit institute that develops norms and standards as a service to several industries, to the state as well as to society as a whole. The DIN Flanges Dimensions are specified and are predominantly used in European countries. The standards developed by DIN lays down both general or detailed specifications for products such as flanges, in addition to procedures and services. PN is often accompanied by the term DIN, which is an acronym for Pressure Nominale.

Flanges are a method of connecting pipes and valves in piping systems. The Din 2527 Flange is measured using the DIN standards. These flanges range in diameter from ½ to 48 inches. These flanges are highly resistant to all forms of corrosion. They don’t deform easily under extreme temperatures. Apart from that, they possess excellent mechanical properties. We are the top manufacturers and suppliers of Din 2527 Flange. Our institution aims at producing the best products at the most reasonable rates.

Flanges are unique piping connectors used in many applications. The DIN 2561 Flange show excellent tolerances to extreme temperatures and pressures. These flanges also possess good corrosion resistance properties. They are used in numerous industrial and chemical applications. Some of these flanges are also used in regular plumbing and day-to-day requirements. We are amongst the few top DIN 2561 Flange producers in the country. Our vision is to produce the best products, which are available to all at reasonable prices.
