EcoChem Analytics products

The MC3 is a multicomponent IR gas analyzer that is specifically designed for continuous monitoring of a flue gas stream. The infrared optical bench, sample cell and control components are all integrated into one convenient, and easily serviced ventilated enclosure.

Unique design enables entire probe can be removed without pulling flange. With or without air operated isolation valve. Probe heater can be replaced at low cost. Easy filter cartridge change out. Compact design, fast response time. Heater temperature control, local or remote. All wetted parts 316SS, exotic alloys on request. Lowest cost, highest reliability.

Since 1991, EcoChem has pioneered the use of the Photoelectric Aerosol Sensor (PAS) for real-time measurement of Carbon aerosols. Previous versions of the PAS monitor (PAS 1000i, 1000e and 1002i ) are widely used by regulatory, research and industrial organizations.

The PAS 2000 works on the following principles: Using an Excimer lamp the aerosol flow is exposed to UV radiation. The Excimer lamp offers a high intensity, narrowband source of UV radiation. The wavelength of the light is chosen such that only the carbon aerosols are ionized, while gas molecules and non-carbon aerosols remain neutral. The carbon aerosol particles emit electrons, which are subsequently removed when an electric field is applied.  The remaining positively charged particles are collected on a filter inside an electrometer, where the charge is measured. The resulting electric current establishes a signal, which is proportional to the concentration of Elemental Carbon and/ or PAH. Also by operating the Excimer lamp in a chopped mode, the PAS 2000 can eliminate the background signal, which is associated with freshly generated aerosols. The chopped mode also enables a dynamic zero to be generated automatically by the instrument.

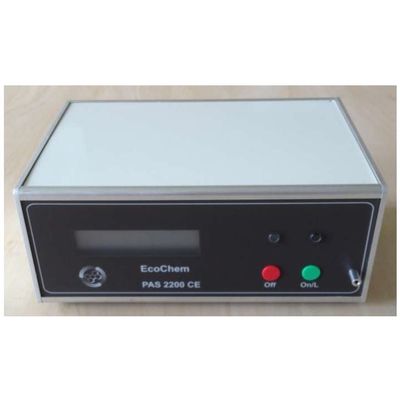

Detects particulate-matter surface area through diffusion charging. Lightweight, compact and ruggedized construction. Battery powered with onboard data storage. Applications related to personal exposure in various environments (homes, workplace, automobiles, tunnels etc.). Companion product to the PAS 2200CE the DC 2200CE measures ALL particulate matter, the PAS 2200CE measures PAH (primarily on carbonaeous matter).

The PAS 2000 works on the following principles: Using an Excimer lamp the aerosol flow is exposed to UV radiation. The Excimer lamp offers a high intensity, narrowband source of UV radiation. The wavelength of the light is chosen such that only the carbon aerosols are ionized, while gas molecules and non-carbon aerosols remain neutral. The carbon aerosol particles emit electrons, which are subsequently removed when an electric field is applied. The remaining positively charged particles are collected on a filter inside an electrometer, where the charge is measured. The resulting electric current establishes a signal, which is proportional to the concentration of Elemental Carbon and/ or PAH. Also by operating the Excimer lamp in a chopped mode, the PAS 2000 can eliminate the background signal, which is associated with freshly generated aerosols. The chopped mode also enables a dynamic zero to be generated automatically by the instrument.

HOVACAL is a calibration gas generator especially designed for calibration of continuous emission monitoring systems. HOVACAL generates a defined mixture of air and water vapor and is also able to generate different other gas vapor mixtures like mercury chloride, hydrogen chloride, ammonia, hydrogen fluoride and others with defined concentration. The desired component is available as a standard solution in different concentrations.
