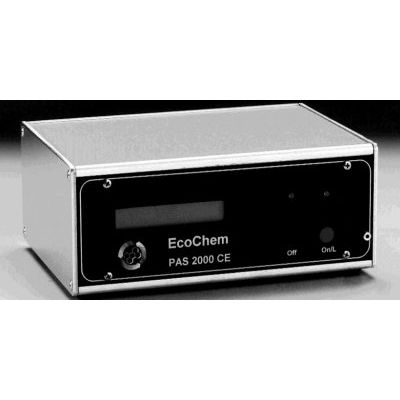

- Model PAS 2000CE - Compact Real-Time Photoelectric Aerosol Sensor

From

0

The PAS 2000 works on the following principles: Using an Excimer lamp the aerosol flow is exposed to UV radiation. The Excimer lamp offers a high intensity, narrowband source of UV radiation. The wavelength of the light is chosen such that only the carbon aerosols are ionized, while gas molecules and non-carbon aerosols remain neutral. The carbon aerosol particles emit electrons, which are subsequently removed when an electric field is applied. The remaining positively charged particles are collected on a filter inside an electrometer, where the charge is measured. The resulting electric current establishes a signal, which is proportional to the concentration of Elemental Carbon and/ or PAH. Also by operating the Excimer lamp in a chopped mode, the PAS 2000 can eliminate the background signal, which is associated with freshly generated aerosols. The chopped mode also enables a dynamic zero to be generated automatically by the instrument.

  • Detects ultrafine carbon aerosols in real-time
  • Lightweight, compact and ruggedized construction
  • Battery powered with onboard data storage
  • Applications related to personal exposure in various environments (homes, workplace, automobiles, tunnels etc.)
  • Companion product to the DC 2000CE --- the DC 2000CE measures ALL particulate matter, the PAS 2000CE measures PAH (primarily on carbonaeous matter)

Source-specific calibration curves are available or can be generated where the monitor output is compared to an analytically determined EC and PAH concentration. A site-specific calibration curve can provide greater accuracy for the particle size, charge and compound-specific to the source. In addition to the site-specific curves, an approximate universal calibration curve can be used for screening and real-time trending applications.

  • Display : 16 characters with 2 lines LED
  • Power : 115 volts AC / 60 Hz  & 220 volts AC / 50 HzMax. Battery 15 volts Lithium Metal Hydride
  • Range : 0 to 4000 ng / m3
  • Lower  Threshold : ~ 1 ng / m3
  • Response time : < 10 seconds (adjustable)
  • Digital  Output : RS - 232 (for data download and program upload)
  • Analog Output : 0 to 10 volts
  • Sample gas : Built-in pump with flowrate controlled at 1 L/min
  • Operating temp : 40 to 104 ºF  (5 to 40ºC)
  • Dimensions : Height x Width x Depth = 3in x 7in x 5in ( 68mm x 175mm x 124mm )
  • Weight : 3 lb. ( 1.5 kg )
  • Data Storage : 8000 data points (each data point consisting of : Time, Value )
  • Data Download :User-friendly PC-compatible graphical software used for downloading the collected data. Flat ASCII file output can also be generated for further analysis (e.g. Microsoft Excel format).
