ESCO International (EI) products

Compact design and easy operation, modular electronic, every dielectric element is built with its own fuse, hydraulic connections made with stainless steel, electrical control connections and PSU made on the skid, processing instrumentation, PLC with touch screen control panel.

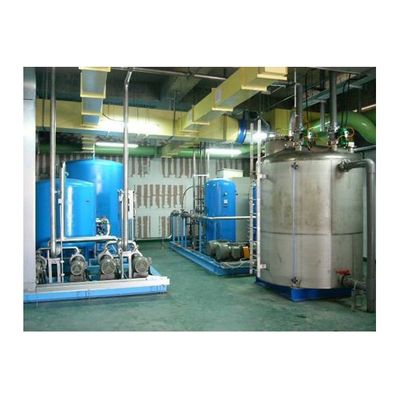

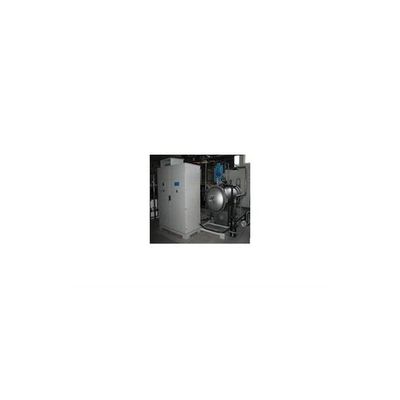

The skid mounted ozone generator systems are specifically designed and manufactured to meet the disinfection and sanitization requirements for controlled water quality standards for various industries, such as: bottling and rinsing plants, food and beverage industries, pharmaceutical and chemical processes, ultra pure water in electronic and pharmaceutical sectors, swimming pools and hot water circuits, potable water circuits, process water loops.

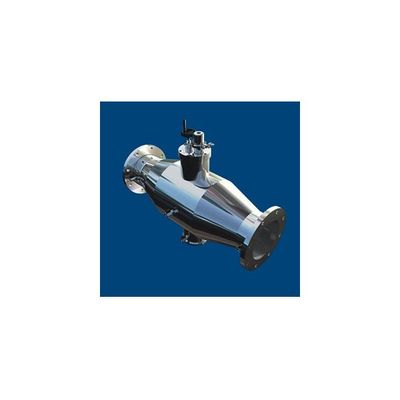

ESCO International can provide a wide selection of low pressure and medium pressure UV Systems. Flow rates from 1 m3/h to 3000 m3/h as standard. Amalgam lamp UV series. Inline Medium Pressure UV systems. Inline medium pressure UV systems with standard manual wipers. UV monitoring & PLC control. Optional Automatic cleaning systems. Optional Chemical cleaning systems. Stainless Steel 304, 316L with special anti-corrosion coating. Custom-designed UV systems.

We offer engineered combined filtration and UV system for water treatment UV & Filtration Skid: Filtration and UV sterilization treatment. Flow rates from 1 to 200 m3/h. Filtration grade 10 to 300 µm.

ESCO International has, through intensive research and site trials, developed a unique advanced oxidation process, the CATADOX. The CATADOX process combines treatment by ozone, UV, hydrogen peroxide and when required a proprietary solid state catalyst. The CATADOX performs excellently in challenging applications such as micro-pollutant oxidation, non-biodegradable COD removal, enhanced TOC reduction, VOCs abatement, toxicity reduction.

Once produced, the ozone gas must be transferred into the water to be treated. Mixers, ensure that the ozone is thoroughly mixed with water. Higher ozone mass transfer, means that almost all of the generated ozone is available for treatment of the water in question.

Air contaminants that are harmful to human health and the environment are known as  Hazardous Air Pollutants (HAP) or Toxic Air Contaminants. ESCO International has developed a range of novel Catalytic Vent gas Destruct Units” ULTRACLEAN” suitable for the destruction of a wide range of industrial toxic gases. Industrial applications include semiconductor, LCD , and petrochemicals. The treated HAP compounds are hydrides (AsH3, PH3), metalorganics, mercaptans, poly aromatic halogene (eg., dioxin), chlorinated solvents (TCE, DCA), and inorganic acids (e.g, Cl2, H2SO4, H2S). The catalytic vent gas destruct units optimises the use of modern catalysts in order to obtain the highest possible efficiency. Effluent concentrations of toxic gases are reduced to below the safety and health standard, eg. threshold level value (TLV).

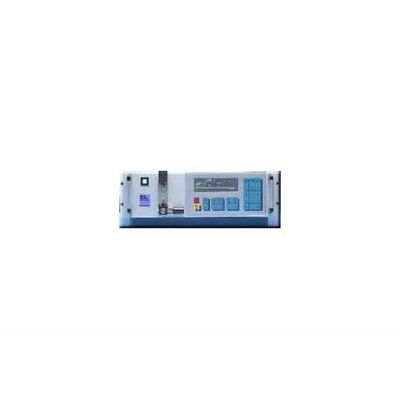

ESCO International can offer ozone analyzers including ozone monitoring in the gas phase, water phase and atmosphere. Gas phase ozone monitors are suitable for measurement of the ozone produced by the ozone generator as well as the ozone off-gas that leaves the ozone contact chamber. The liquid phase monitor is suitable for measuring the dissolved ozone in water. We also offer ambient ozone monitors as safety devices for the protection of personnel working in ozone plants. Ozone Leak detector (safety device), potable or wall mounted. Multipoint gas selector.

The Oxygen generator takes air and separates the oxygen from other gasses. The separation is accomplished with an inert ceramic material that does not require replacement (when maintained and used according to this instruction manual). The process is completely regenerative which makes it reliable and virtually maintenance free. The delivery pressure can be set from 0 to 4,0 bars (g) to meet the needs of your operation.

The Air dryer prepares the incoming air for use in the ozone generator (or the oxygen generator) and that ensures a high ozone concentration and a reliable operation of the ozone unit. ESCO International supplies a complete range of air dryers specifically designed and selected to operate with our ozone generators.
