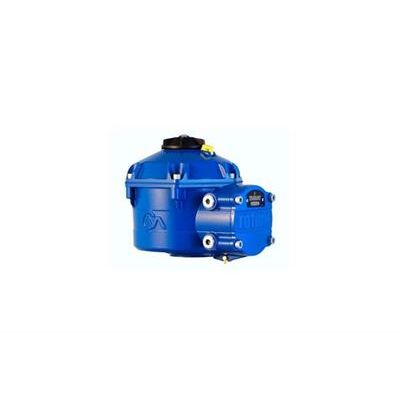

The Rotork CVQ quarter-turn, electric process control actuator, offers a highly accurate and responsive method of automating control valves, without the complexity and cost of a pneumatic supply. With an increased focus on production costs and efficiency, accurate control of product through the pipeline is paramount. With resolution figures better than 0.1% and the ability to eliminate position overshoot, the Rotork CVQ helps to maximise product quality and plant capacity. The CVQ delivers a range of sizes suitable for almost all quarter-turn control valve applications requiring highly accurate positioning. It offers end users high standards in performance, build quality and overall value.

The SM-1700/5000 Series of rotary actuators are internally geared to produce up to 12,500 ft.lbs. (16,950 Nm) of torque, and offer continuous modulation. They are ideally suited for dampers, vanes, valves and other process control applications requiring exact positioning control.

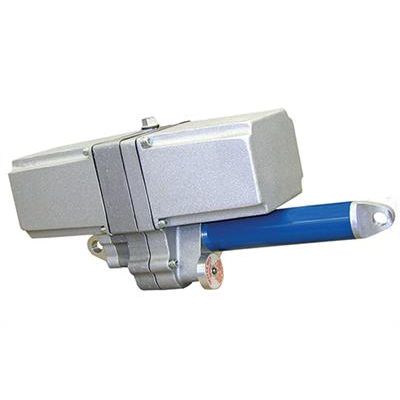

Thrusts from 150 to 1,500 lbf. (667 to 6,672 N). Stroke distance from 6 to 24 inches (152 to 610 mm). Modulating Duty: 2,000 starts per hour. Manual override standard. HART® available. Automatic thrust limiting. Anti-condensation heater and thermostat. Self-locking drive system to hold in last position and prevent backdriving up to thrust rating. AC input power (1-phase and 3-phase) or DC input power versions. Temperature range from -40° F to 150° F (-40° C to 65° C).

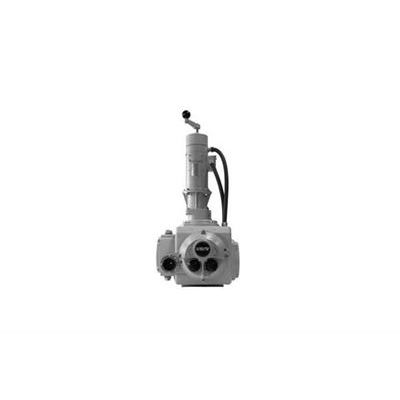

Can be powered by 1-phase or direct current supplies. Linear drive action. Optional Local Controls with LCD Display (linear, part-turn, multi-turn) as well as Local Controls with LCD Display Plus Supercapacitor Reserve Power Pack (RPP) (linear and part-turn only) units available.

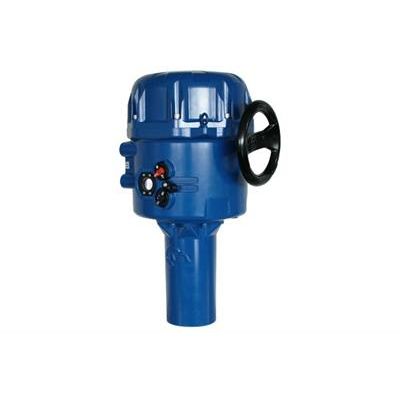

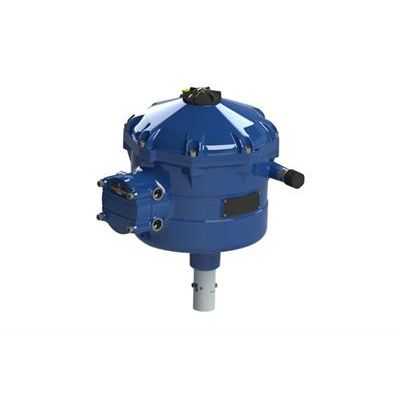

The Rotork CVL linear, electric process control actuator, offers a highly accurate and responsive method of automating control valves, without the complexity and cost of a pneumatic supply. With an increased focus on production costs and efficiency, accurate control of product through the pipeline is paramount. With resolution figures better than 0.1% and the ability to eliminate position overshoot, the Rotork CVL helps to maximise product quality and plant capacity. The CVL delivers a range of sizes suitable for almost all linear control valve applications requiring highly accurate positioning. It offers end users high standards in performance, build quality and overall value.

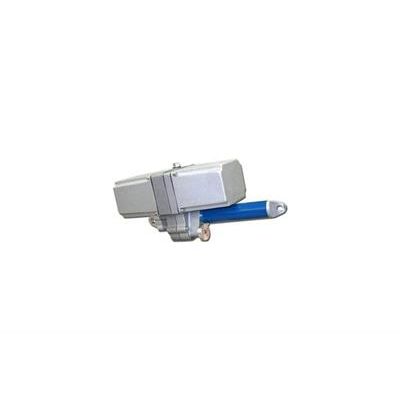

Thrusts from 800 to 1,600 lbf. (3,558 to 7,117 N). Stroke distance from 6 to 24 inches (152 to 610 mm). Modulating Duty: 2,000 starts per hour (indoor/outdoor). Manual override standard. HART® available. Automatic thrust limiting. Anti-condensation heater and thermostat. Self-locking drive system to hold in last position and prevent backdriving up to thrust rating. AC input power (1-phase and 3-phase). Temperature range from -40° F to 150° F (-40° C to 65° C).

Torques from 370 to 26,000 ft.lb.(271 to 35,256 Nm). 90 to 313 degrees rotation. Continuous unrestricted modulating duty. Manual override standard. HART, Profibus & Foundation Fieldbus available. Automatic torque limiting. Self-locking drive system to hold in last position and prevent backdriving up to 125% of torque rating. AC input power (single and three phase). Temperature range from -40° F to 185° F (-40° C to 85° C).

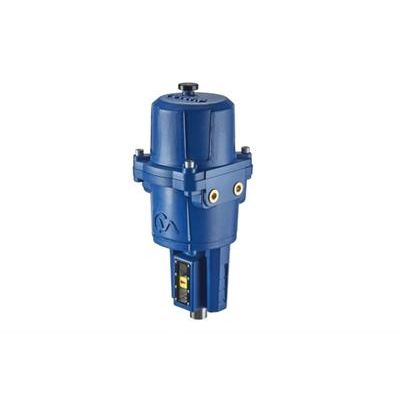

Electric actuators for advanced automation of large control valves. Combining high thrust output with a 4.5" (114.3 mm) stroke length, CML now enables the automation of larger control valves with higher pressure ratings. CML-1500 and CML-3000 maintain the array of features and functions available with the existing CMA range while substantially extending the performance capabilities for direct drive linear valves.
