The ergonomic upper part has been developed for drilling in an ergonomically sound manner. The ergonomic upper part is available in several variants.

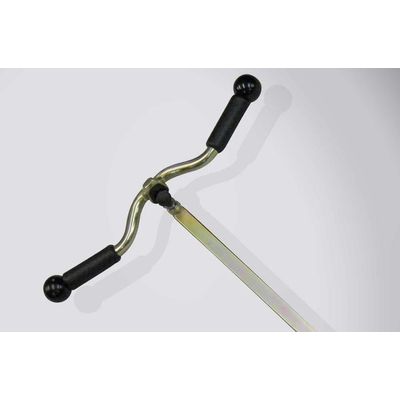

The Handle part for various augers has a length of 60 cm and has a bayonet or conical thread connection. The upper part has a T-shaped handle and is available in several variants. It can be combined with various hand augers.

The handle with a beating head is mainly used when you want to take a sample from harder soils. This can be done, for instance, with a gouge auger or an undisturbed core sampler for harder soils.

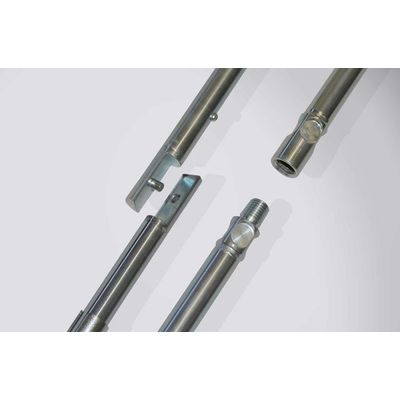

The extension rod made of sturdy steel is for extending various augers. The extension rods are 1 metre long and, depending on the type, are fitted with a conical thread connection or a bayonet connection.

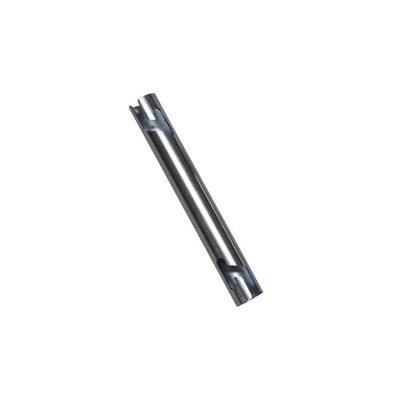

The coupling sleeve is used when extending your auger with an extension rod. The coupling sleeve ensures a secure connection between the extension rod and your auger. The coupling sleeve can only be used when using extension rods, handles and augers with a bayonet connection.

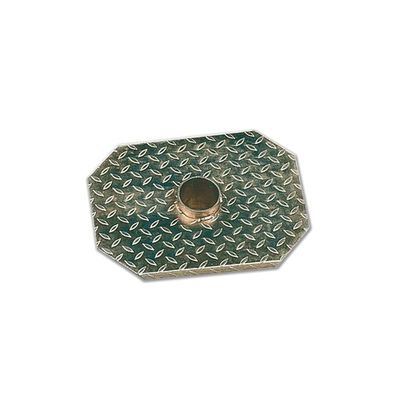

The casing tube platform can be used on the casing tube clamp or at ground level to stabilise the casing tube. When augering under more difficult circumstances, it is sometimes difficult to get a drill pipe deep enough into the ground. In that case you can use a casing tube platform. The casing tube platform is a slip-resistant steel platform with a hole so that it fits over the casing tube. The casing tube platform can be placed on a pipe clamp and thus carry the body weight of one person. The casing tube platforms are used to ensure an ergonomic position during deep bailer boring.

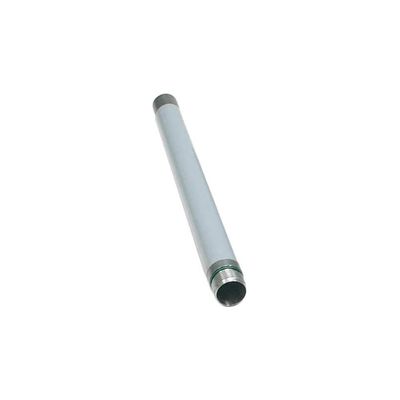

The casing tube prevents your borehole from collapsing. The casing tube is made of plastic (ABS) and is fitted with a steel threaded sleeve. Our drill pipes have a coarse thread that you can turn counter-clockwise. The thread closes in 2.25 turns and an o-ring ensures that the casing seals well against fine sand. The weight of the casing tube depends on the variant you buy. In heavier circumstances you can use a casing tube platform. This will allow you to easily turn the casing in the borehole.

The protective cap for drill pipes with a diameter of 90 mm is available in a variant with internal thread and with external thread. The protective caps are made of sturdy plastic.

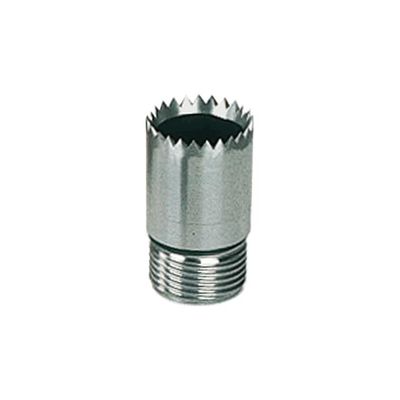

This casing shoe with a diameter of 90 mm is suitable for drill pipes with the same diameter. The casing shoe is toothed and has a length of 10 cm. The casing shoe is used to make it easier to penetrate the soil. Finally, the casing shoe has a coarse, left-hand thread.

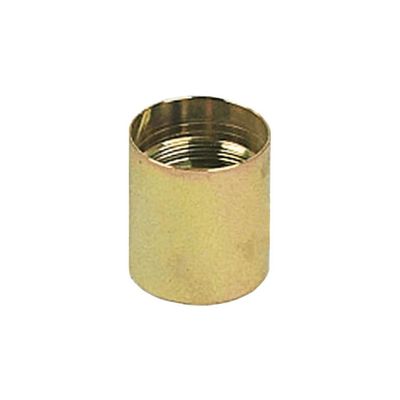

The threaded cap is made of high-quality steel. The product is suitable for drill pipes with a diameter of 90 mm and has a left-hand, coarse, round female thread.
