Synova S.A. products
Metal Cutting Systems
Synova - Laser Metal Cutting System

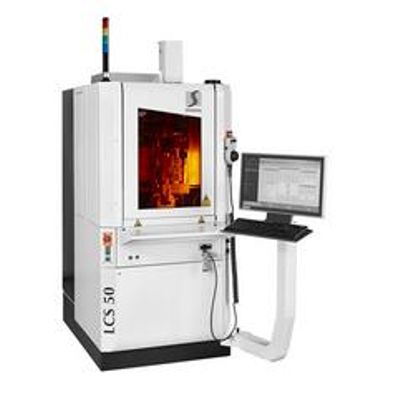

The LCS 50 with 3 or 5 axes is Synova’s most compact and cost-efficient Laser MicroJet machine. The LCS 50 is ideal for finish-machining of diamond tools, watch components and other small work pieces that require precision cutting, drilling, grooving or slicing as well as 3D processing. The machine uses linear motor axes (LCS 50-3) and additional B and C rotary axes with torque motors enabling 3D cutting and shaping (LCS 50-5). The state-of-the-art CNC machine system includes a high-power green laser, a compact high-pressure water pump with an ultra-pure water unit, a touch-screen control panel, a touch probe and a vision system with motorized zoom.
Synova - Laser Metal Cutting System

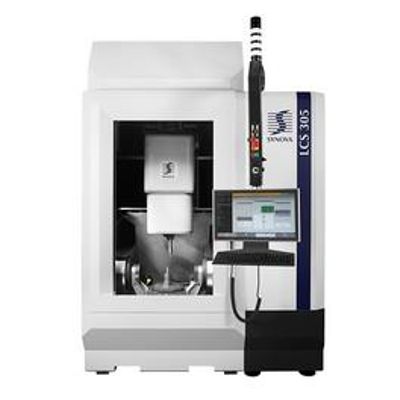

The LCS 305 with 5 axes is specifically designed for the automatic production of larger and multi-tooth diamond cutting tools. The CNC machine with five synchronous axes is characterized by a particularly intelligent machine concept and highly dynamic axes for maximum precision and speed.
Synova - Laser Metal Cutting System
The LCS 150 is a versatile laser cutting system conceived for micro-machining applications, such as cutting, drilling or grooving for a variety of industrial sectors. Different laser sources are available for this machine, allowing up to 200 W. The machine uses linear X- and Y-motor axes in a cross table and the work piece is fixed on a M6-thread table. An optional B rotary axis can be mounted on the table allowing positioning the work piece with a different rotation angle.The state-of-the-art CNC machine system includes a high-power green or infrared laser, a compact high-pressure water pump with an ultra-pure water unit, a touch-screen control panel and a vision system with motorized zoom.
Tool Cutting Systems
Synova - Tool Cutting System

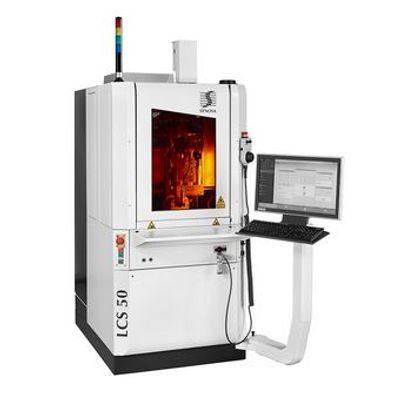

The LCS 50 with 3 or 5 axes is Synova’s most compact and cost-efficient Laser MicroJet machine. The LCS 50 is ideal for finish-machining of diamond tools, watch components and other small work pieces that require precision cutting, drilling, grooving or slicing as well as 3D processing.
Synova - Tool Cutting System

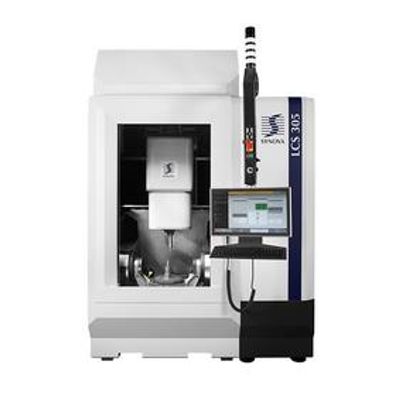

The LCS 305 with 5 axes is specifically designed for the automatic production of larger and multi-tooth diamond cutting tools. The CNC machine with five synchronous axes is characterized by a particularly intelligent machine concept and highly dynamic axes for maximum precision and speed.
Turbine Drilling Systems
Synova - Metal Cutting System

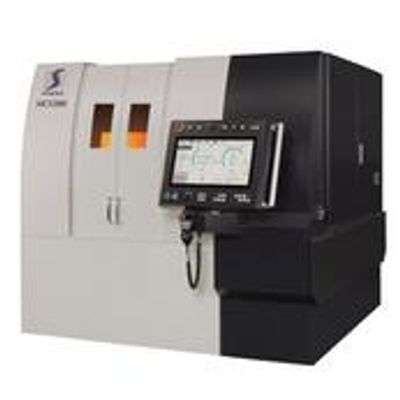

The MCS 300 integrates Synova’s Laser MicroJet technology with a Makino-based platform. The 3-axis machine enables high-precision metal and hard material machining such as cutting, drilling and grooving.
Synova - Metal Cutting Systems

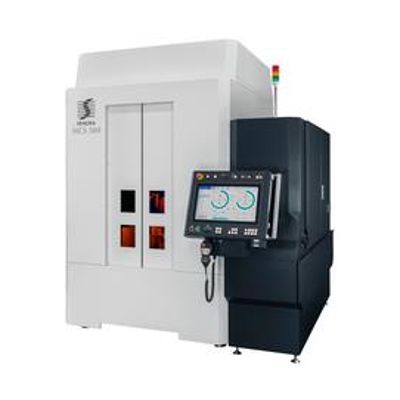

The MCS 500 in Makino’s machine platform offers a precise XYZ stage, a large sturdy mounting table and a cast iron machine frame. With its simultaneous 5 axes function is specifically designed for 3D machining needs and drilling in industrial gas turbine and jet engine components.
Diamond Cutting Systems
Synova - Diamond Cutting System

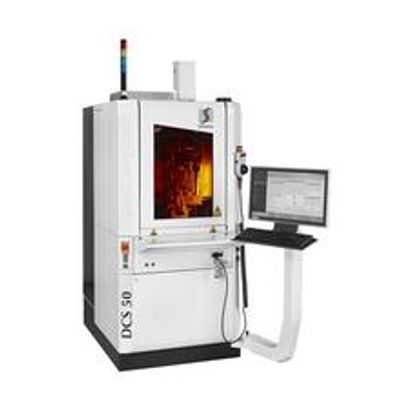

The DCS 50 is Synova’s most compact diamond machining system. The 3-axis machine is designed for cutting pointers (0.1 to 1.5 cts.). The DCS 50 with two additional rotary axes also allows high-precision coning, blocking and fancy shaping.
DaVinci - Diamond Cutting System
"DaVinci Diamond Factory" is an automated laser cutting and shaping system for diamonds. Rough diamonds can be transformed into brilliant cut diamonds with up to 57 facets in a single process. The DaVinci system also allows fancy shaping.
Synova - Diamond Cutting System
The DCS 150 is Synova’s diamond cutting system for small and medium-sized natural and laboratory grown diamonds. The 3-axis machine allows sawing rough diamonds with a size of 2 grz. to 4 cts. and coring and slicing of CVD diamonds. Since no focal adjustment is required, a working distance and cutting depth of up to 30 millimeters is possible. Thus, a diamond can be cut in a single setting rather than from both sides, as it is the case with conventional lasers.
