TenCate Geosynthetics Netherlands bv

18 products found

Products

  • Non Woven Geotextiles

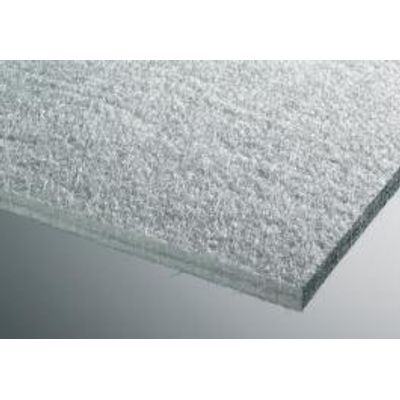

    Our nonwoven geotextiles are mechanically bonded continuous filament nonwovens made from 100% UV stabilized polypropylene. They have been used for decades as separation, protection and filtration elements in a large number of applications, adding years to the life of any roadway, railroad, landfill or civil / environmental engineering project. They are robust and long lasting. The manufacturing method (a continuous process with endless filaments) guarantees the use of high-quality raw materi

  • TenCate Polyfelt - Model TS - Non-Woven Geotextiles

    TenCate Polyfelt - Model TS - Non-Woven Geotextiles

    TenCate Polyfelt TS geotextiles are mechanically bonded continuous-filament nonwovens manufactured from UV-stabilized polypropylene. The mechanical properties of TenCate Polyfelt TS guarantee excellent resistance to installation damage, excellent hydraulic properties and outstanding long-term performance.

  • TenCate Polyfelt - Model P - Protection Geotextiles

    TenCate Polyfelt - Model P - Protection Geotextiles

    TenCate Polyfelt P protection geotextiles are mechanically bonded nonwovens made from UV-stabilized polypropylene. The use of high-quality raw material and continuous stringent internal and external quality controls guarantee a constantly high product quality.

  • TenCate Polyfelt - Model F - Two-Layer Continuous Filament Nonwoven Geotextile

    TenCate Polyfelt - Model F - Two-Layer Continuous Filament Nonwoven Geotextile

    TenCate Polyfelt F filter fabrics are geocomposites, consisting of two layers of mechanically bonded continuous-filament nonwoven made from 100% UV-stabilised polypropylene. One filament layer is designed as a filter, the other as a protection layer preventing mechanical damage to the filter. The optimised opening size and number of constrictions ensure excellent long-term filter performance.

  • Woven Geotextiles

    TenCate woven geotextiles are often used to enhance the performance of a variety of soil and hydraulic structures. Firstly, TenCate woven geotextile was used in hydraulic structures to correct the damage caused by severe storms along the Dutch coastlines. It expanded quickly to a wide variety of civil engineering applications namely road construction, reinforced embankments, hydraulic construction. TenCate Geolon woven geotextiles are installed as separation and filter layers to allow ground

  • TenCate Geolon - Model PE - Filter Fabrics for Woven Geotextiles

    TenCate Geolon - Model PE - Filter Fabrics for Woven Geotextiles

    TenCate Geolon PE filter fabrics are woven geotextiles made from high density polyethylene monofilament and tape yarns. These fabrics are UV stabilized and specially designed to meet the most critical filter demands. They are also available with woven-in loops for under water applications.

  • TenCate Geolon - Model PP Series - Woven Geotextiles

    TenCate Geolon - Model PP Series - Woven Geotextiles

    TenCate Geolon PP series are woven fabrics, made of polypropylene tape and split fibre yarns, developed and manufactured mainly for usage as separator and reinforcement geosynthetic in road constructions. They are also available with woven-in loops and long life additives for under water applications.

  • Geogrids

    Geogrids form a clear category for soil reinforcement either in base reinforcement or in retaining structures. Geogrids are characterised by high tenacity strength at low elongation and excellent friction properties opposite coarse grained soil. It is therefore mainly used for the reinforcement of non cohesive soils. Geogrids offer a reinforcement solution to your project.

  • TenCate Miragrid - Model GX - Knitted Geogrids

    TenCate Miragrid - Model GX - Knitted Geogrids

    TenCate Miragrid GX products are knitted geogrids made from high tenacity polyester yarns which are covered with a black polymeric coating, providing high tensile strength with low creep characteristics. A full range of tensile strengths, both uniaxial and biaxial is available.

  • Paving Products

    The focus of attention is therefore, on maintenance techniques and refurbishment methods which allow the working life of the basic road structure to be extended in a cost-effective and technically reliable manner. One method which has been successfully used world-wide for more than 30 years is the maintenance of asphalt and concrete roads using geosynthetic interlayers.  This method represents an economic means of considerably increasing the maintenance intervals and thus the working li

  • TenCate Polyfelt - Model PGM - Paving Fabrics

    TenCate Polyfelt - Model PGM - Paving Fabrics

    TenCate Polyfelt PGM paving fabrics are mechanically bonded, continuous-filament, polypropylene non-wovens with optimum bitumen retention capacity. TenCate Polyfelt®PGM is economically more effective than conventional road maintenance methods. Its use retards reflective cracking of repaired asphalt road surfaces by a combination of the functions stress relief, sealing, and uniform bonding between the layers.

  • TenCate Polyfelt - Model PGM-G - High Strength Glass Filament Reinforced Geocomposite

    TenCate Polyfelt - Model PGM-G - High Strength Glass Filament Reinforced Geocomposite

    TenCate Polyfelt PGM-G is a high strength glass filament reinforced geocomposite. TenCate Polyfelt PGM-G is ideally suited to the economic local maintenance of any cracked road surface with a stable substructure. The combination of TenCate Polyfelt PGM - with its sealing and uniform bonding - and the glass filament reinforcement provides effective maintenance and leads to a sustainable reduction in new crack formation.

  • Reinforcement Geocomposites

    Reinforcement geocomposites are characterised by high tensile strength combined with good in plane permeability. It is mainly sed for the reinforcement of cohesive soils, where its drainage function promotes an increase in shear strength. The nonwoven omponent protects the high tenacity yarns from damage, and its separation function means that reinforcement geocomposites can be used between fine-grained and coarse-grained soils.

  • TenCate Rock - Model PEC - Reinforcement Geocomposites

    TenCate Rock - Model PEC - Reinforcement Geocomposites

    TenCate Rock PEC is a geocomposite consisting of continuous filament non woven, reinforced by high tenacity polyester yarns. TenCate Rock PEC is available in a wide range of tensile strengths, uniaxial and biaxial. Special types can be manufactured on request.

  • TenCate Bidim - Model AR - Mechanically Bonded Continuous-Filament Nonwoven

    TenCate Bidim - Model AR - Mechanically Bonded Continuous-Filament Nonwoven

    TenCate Bidim AR is a mechanically bonded continuous-filament nonwoven with an enhanced abrasion resistance. TenCate Bidim AR combines the benefits of conventional nonwoven geotextiles with an improved resistance to abrasion stresses. It was developed for railway construction where the high mechanical stresses imposed by the ballast require special attention.

  • Erosion Control

    Erosion control products provide a combined environmental friendly and reinforcement solution. The geocomposites are one single products with a stable structure that prevent from wash out and allow vegetatation going through. TenCate erosion control mats offer a ready solution to reinforce and let the vegetation going through.

  • TenCate Geolon - Model Robulon - Geocomposite for Erosion Control

    TenCate Geolon - Model Robulon - Geocomposite for Erosion Control

    TenCate Geolon Robulon are high strength geocomposite for erosion control purposes. The product is made of 100% highly durable and UV resistant PP, PE & PET with a 3 dimensional structure. The combination of reinforcement and soil retention makes Robulon the ideal mat for erosion control in a variety of applications such as protection of slopes, geomembranes, canal and river beddings, and shorelines.

  • TenCate Polyfelt - Model Envirofelt CO - Biologically Degradable Erosion Control

    TenCate Polyfelt - Model Envirofelt CO - Biologically Degradable Erosion Control

    TenCate Polyfelt Envirofelt CO is a biologically degradable erosion control mat made from 100% natural coir. TenCate Polyfelt Envirofelt CO supports the growth of vegetation on slopes by preventing surface erosion and optimising the micro climate. In addition, the degradation of the coir provides nutrients to the plants. Its life expectancy of up to five years ensures protection during the root development phase. TenCate Polyfelt Envirofelt CO...

  • TenCate Polyfelt - Polymat Erosion Control Mats (ECM)

    TenCate Polyfelt - Polymat Erosion Control Mats (ECM)

    TenCate Polyfelt Polymat erosion control mats (ECM) are monofilament Geomats made from polypropylene, with or without Geogrid reinforcement. The structure with its extremely high voids content reinforces the upper 1 to 2 cm of the soil, thereby preventing surface erosion on slopes and offering permanent support to topsoil and vegetation.

  • Drainage Composites

    Drainage element are needed in each civil engineering structures: landfils, retaining walls, basements, tunnels and other sub-surface structures. Drainage geocomposites can consist of a HDPE geonet and a nonwoven filter on one or on both sides,or monofiament geomats from polypropylene, with a filter nonwoven one or on both sides. TenCate drainage composites can guarantees a high water-flow capacity, especially at low overburden pressures is required.

  • TenCate Polyfelt - Model DC - Drainage Mats

    TenCate Polyfelt - Model DC - Drainage Mats

    TenCate Polyfelt DC is a geocomposite consisting of a geonet and a filter nonwoven  on one or on both sides. The geonet is made from high density polyethylene (HDPE), the filter nonwoven consists of polypropylene (PP). TenCate Polyfelt DC is characterised by low compressibility, and is therefore used in situations where effective drainage under high overburden pressures is required.

  • TenCate Polyfelt - Megadrain Drainage Composites

    TenCate Polyfelt - Megadrain Drainage Composites

    TenCate Polyfelt Megadrain drainage composites are monofilament geomats from polypropylene, with a filter nonwoven (TenCate Polyfelt TS) on one or on both sides. The extremely high voids content of TenCate Polyfelt Megadrain ensures a high water-flow capacity, especially at low overburden pressures.

  • TenCate GeoDetect

    The TenCate GeoDetect geotextile enabled sensor comes in three product configurations.

  • TenCate GeoDetect - Fiber Optic Sensing Geosynthetics

    TenCate GeoDetect - Fiber Optic Sensing Geosynthetics

    TenCate GeoDetect is a customizable solution that is created to meet the unique requirements of each individual project. Fiber Bragg gratings (FBG), Stimulated Brillouin Scattering and Raman Scattering are all proven fiber optic technologies that can be built into TenCate GeoDetect. These technologies measure strain, strain & temperature or temperature only changes in soil structures. Strain as low as 0.02% can be measured with a spatial...

  • TenCate GeoDetect - Model S - Fiber Optic Sensing Geosynthetics

    TenCate GeoDetect - Model S - Fiber Optic Sensing Geosynthetics

    TenCate GeoDetect S uses Fiber Bragg Gratings (FBG) technology to measure strain and/or temperature in soil structures.  Compact and easy to install, TenCate GeoDetect S is 1 meter wide by 10 meters long.  Two FBG optical fibers are embedded onto each TenCate GeoDetect S strip with 11 FBG sensors strategically inserted onto the two special optical fibers approximately 1 meters apart.  Strain measurements as low as 0.02% can be obtained...
