ZOGLAB Microsystem Co., Ltd products

Meteorological instruments

ZOGLAB - Model MWS3000 - All-in-one micro weather station

MWS3000 is a compact all-solid-state micro-weather sensor that supports measurement of multiple factors such as temperature, humidity, air pressure, wind speed, wind direction and precipitation. The overall design adopts the concept of modular, solid-state and digital sensors, which has reshaped the appearance structure of traditional automatic weather stations, and has made great breakthroughs in the protection and durability of the whole machine. The high-strength anti-ultraviolet ABS plastic alloy enables this product to be exposed to outdoor solar radiation for a long time, which brings more convenience to meteorological observation outdoor operations. It can be widely used in meteorology, civil aviation, marine, environmental protection, space research and other fields.

ZOGLAB - Model HWS3000 - Handheld Portable Ultrasonic weather station with LED display

HWS3000 is a well-designed, portable and professional handheld weather station, supporting measurement of temperature, humidity, pressure, ultrasonic wind speed, ultrasonic wind direction, precipitation and GPS positioning function. The design meets the strict requirement of ergonomics and aeronautical meteorology, adopting the concept of modular, fixed and digital sensor, creating the structure design on traditional automatic weather station, greatly improving its protective capacity and durability. High-strength ABS plastic alloy makes possible long-term exposure under solar radiation. Highly integrated electronic circuit design makes possible small size body contains several times of functions, making outdoor meteorological observation more convenient. HWS3000 Handheld Weather Station is widely used in the meteorological observations of aviation & navigation, airdrop & air-landing, nuclear-chemical monitoring, transportation observation, emergency rescue, mobile meteorology etc.

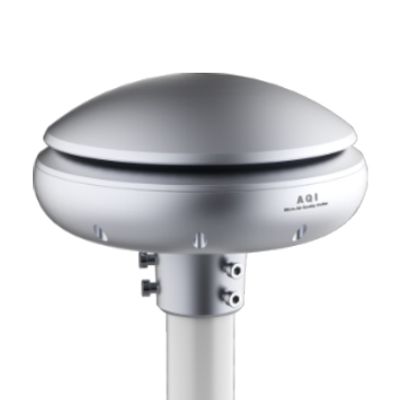

ZOGLAB - Model AQI - Micro air quality station

AQI is a micro air quality station with an exquisite design. It adopts the modular, digital, and solid-state design concept for its sensors, making it easy for various configurations and disassembly. It can measure six key parameters of air quality. It uses electro-chemical sensors and an optical particle counter to monitor air pollution and particles. The main measurement and monitoring elements are SO2 , NO2 , CO, O3 , PM2.5, and PM10. AQI can be widely used in many applications including smart city, road weather, agriculture, forestry and plant protection.

ZOGLAB - Model UAV6000 - Meteorological detection UAV

UAV6000 is a compact medium-low altitude meteorological detection UAV(Unmanned Aerial Vehicle), with measurement of temperature, humidity, air pressure, wind speed, wind direction and other parameters. With the design concept of modular, solid and digital sensor, you can quickly monitor the air quality and environmental information, and improve the access to information on the speed and accuracy. The application of mature UAV is to build flight control platform with replaceable pod design, according to the different detection needs of the sensor type or camera platform. In the data analysis platform, horizontal and vertical data distribution diagram will be presented according to the GPS and terrain, and calculate and display the atmospheric 3D state.

ZOGLAB - Model DBT500 - Digital barometric transmitter

DBT500 Digital Barometric Transmitter has one or multiple high-accuracy pressure sensors that provide excellent accuracy and long term stability. It is designed for usage in meteorology, aviation, environment protection, and other related industrial applications. DBT500 Digital Barometric Transmitter is an ideal solution for barometric measurement. It features an ergonomic design, a 3.5'' LCD that can display the pressure value directly, multiple data interface via RS232/485/LAN/USB, and a built-in battery for power back up.

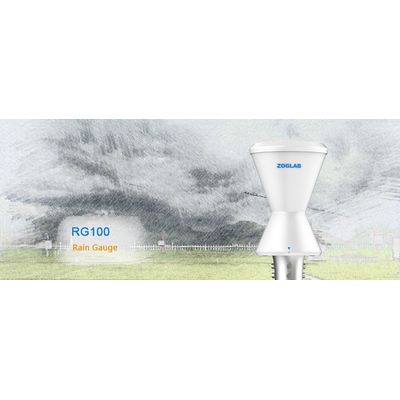

ZOGLAB - Model RG100 - Rain gauge

RG100 rain gauge uses a new generation of tipping bucket technology with a precision ceramic blade design, the measurement resolution can reach to 0.1mm, maximum allowable error is ±0.4mm(≤10mm) . Meanwhile its output signal can directly connect to data collector system through switch signal, RS485, Bluetooth (configured additional wireless module). With the rain collecting area of 200 cm², it can be widely used in areas of meteorology, hydrology, agriculture and forestry. RG100 rain gauge has a small and delicate appearance, with the unique aero-cone design, can reduce the wind effective area and the wind speed influence on precipitation measurement.

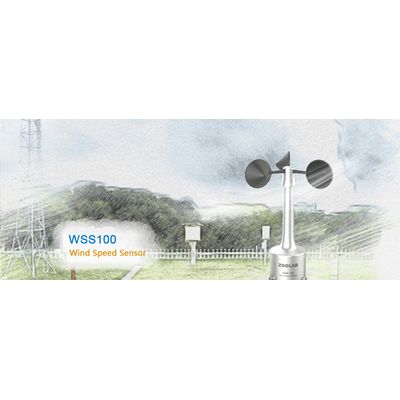

ZOGLAB - Model WSS100 - wind speed sensor

WSS100 Wind Speed Sensor adopts a rotating chopper disc, which cuts the infrared sensor 45 times per one rotation, measuring resolution up to 0.1m/s, the maximum tolerance ±0.5m/s, and the output signal can be directly connected to the data acquisition system through RS485 or photoelectric isolation pulses. It can be widely used in meteorology, ocean, environment, airport, port, agriculture, transportation and other fields. WSS100 is compact and exquisite in shape, featured with robust wind cups, an unique aero-cone design and efficient heating method, suitable for all kinds of harsh environments.

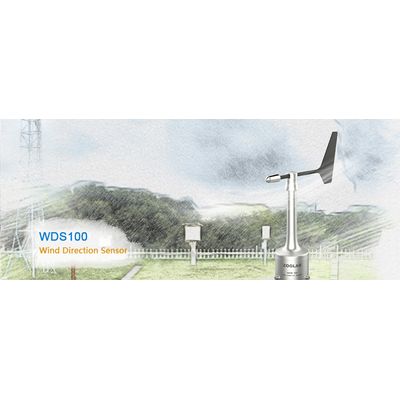

ZOGLAB - Model WDS100 - wind direction sensor

WDS100 Wind Direction Sensor adopts a new magnetic induction design to detect the wind direction angle. The maximum tolerance is ± 3 °, and the output signal can be directly connected to the data acquisition system through RS485, or 7-bit Gray code, or 0 ~ 5V analog output. It can be widely used in meteorology, ocean, environment, airport, port, agriculture, transportation and other fields. WDS100 is compact and exquisite in shape, featured with a robust wind vane, an unique aero-cone design and efficient heating method, suitable for all kinds of harsh environments.

ZOGLAB - Model DBT500TS - high precision digital barometer with an optional temperature and humidity probe

DBTS00TS is a high precision digital barometer with an optional temperature and humidity probe that is ideal for on-site comparisons of pressure, temperature and humidity. It can achieve accuracy of pressure±0.1 hPa, temperature±0.1 °C, and humidity±1 %RH. DBTS00TS has a portable design, a high-brightness OLED display and a built-in battery which make it ideal to be used in field measurement and verification. DBTS00TS is a widely used as the transfer standard in meteorology, civil aviation, marine monitoring, environmental protection, agriculture and other fields.
