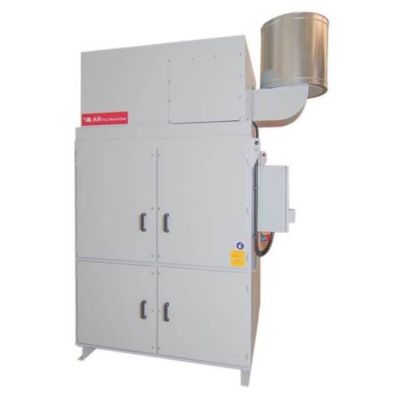

AR Filtrazioni - Model 10000 Series -Air Cleaners of Oil Mist Smoke Dust for Machine Tools
AR 10000 Series is suitable for suction and purification of large quantities of oil mist and fume produced during wet machining processes. The equipment is equipped with a pre-filtration chamber, drainage for the recovery of the recondensed liquid, a low energy consumption class IE3 motor, a motor circuit breaker and a visual filter clogging detector. It has a number of pluses compared to the classic centralized system, first of all with the re-introduction into the working environment of the hot air, saving on the conditioning of the shed and immediately condensing the oil.
Equipped with a high and very high efficiency filtration stage according to European standards EN 1822 (Standards EN 1822 Uniaria Course), it ensures filtration efficiency up to 99.995% for particles> 0.15 µ (The average diameter of the particles that make up the fumes is always <1 µ) according to European Standards EN 1822.
The equipment is equipped with a pre-filtration chamber, drainage for the recovery of the recondensed liquid, a low energy consumption class IE3 motor, a motor circuit breaker and a visual filter clogging detector.
The AR 10000 series has been designed for large machines and large quantities of smoke and oil mists; but it is well suited to SEMI-CENTRALIZED solutions with a whole series of pluses compared to the classic centralization, first of all the re-emission inside the working environment of the hot air, making you save on the conditioning of the shed, not to mention the immediate recondensation of the oil.
AR 10000 Series is suitable for suction and purification of large quantities of oil mist and fume produced during wet machining processes.
- Air flow rate [Mc/h]: 9600 Mc/h
- Power [KW]: 9.0 KW
- Noise Level [dB]: 79 dB
- Weight [Kg]: 780 Kg ÷ 800 Kg
- Efficiency: 95% ISO EN 16890 ÷ 99,995% (0,15µ) EPA/HEPA filters
- Plus: Can be equipped with: Pluri-cells of active carbon (exhalations and odours). Double stage of high/very high filtration efficiency. Noise attenuator
