Howell Laboratories, Inc.

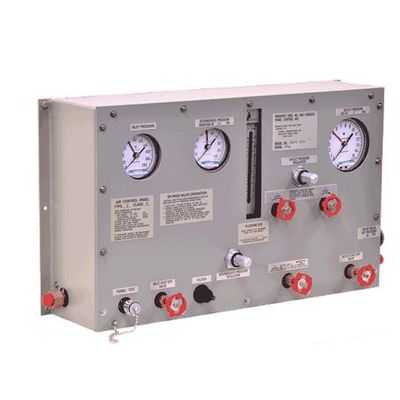

Howell - Model 5642 -Air Control Panels
Air pressure is regulated by two (or, for the -G531, one) pressure regulators. Flow rate of air being delivered to the using equipment is measured by a direct-reading float-in-tube flowmeter.
Most popular related searches
emergency shutoff valve
compressed air treatment
pressure regulator
relief valve
compressed air
pressure gauge
valve testing
air treatment
clean air
manual valve
Configurations other than those shown below may be special-ordered.
- Air control panel in accordance with NAVSHIPS Standard Drawing 803-1385925 Rev. E. Designed for either automatic or manual operation.
- Bypass: A manual bypass valve is provided to allow continued operation in the event of malfunction of any of the automatic components.
- Relief Valve: Preset adjustable relief valve protects downstream equipment from overpressurization.
- Dimensions: 30″ wide x 17″ high x 9-1/2″ deep.
- Weight: 70 lb (110 lb crated).
- Operation: Either automatic or manual, continuous or intermittent.
- Power Requirements: No electrical power required.
- Air Requirements: Clean, dry compressed air at 80 to 150 psig.
- Filter: Prevents introduction of any particulates larger than 25 microns.
- Calibration: External ports are provided for calibration of the dew point alarm system and of pressure gauges.
Controls & Indicators:
- Purge/test valve
- Inlet, intermediate & outlet pressure gauges
- Inlet & outlet shutoff valves
- Test switch
- Emergency shutoff valves
- Intermediate & outlet pressure regulators
